Description

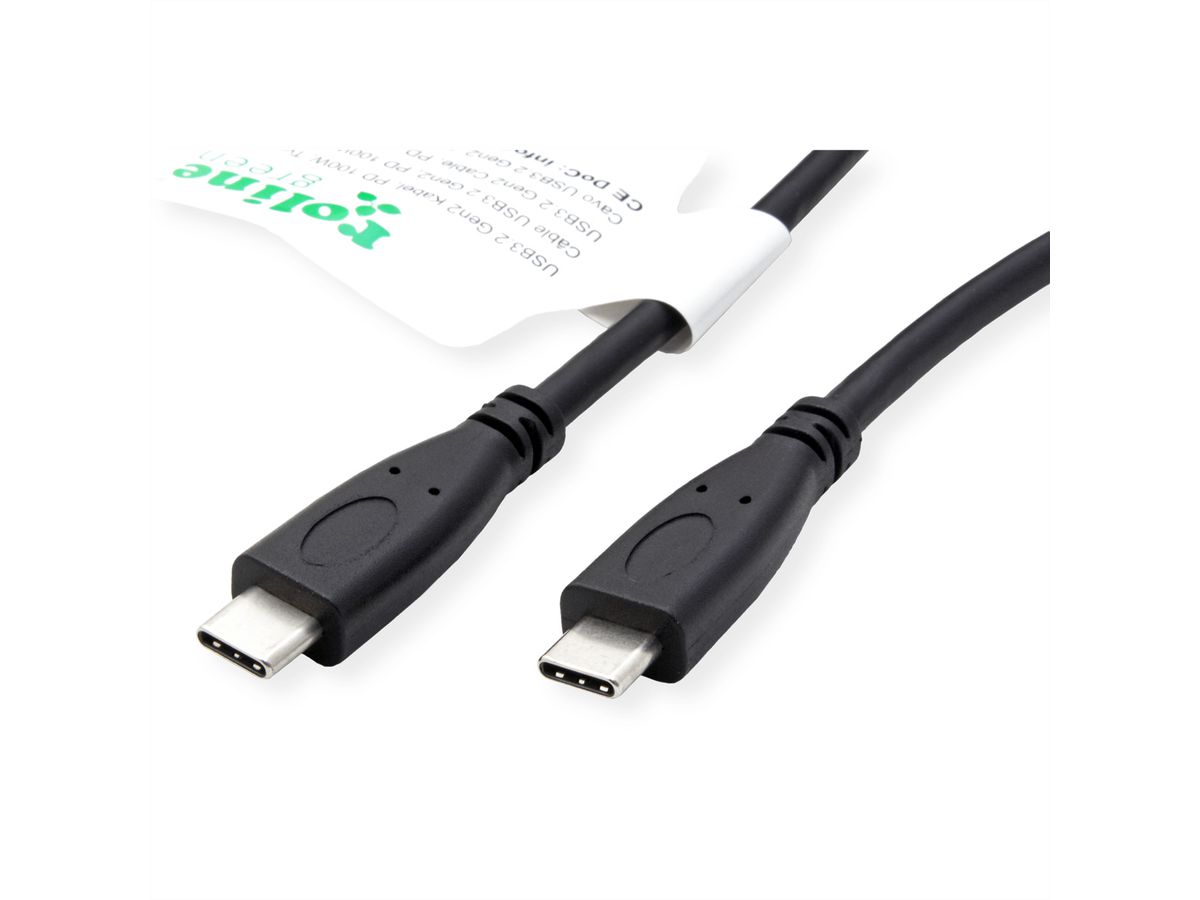

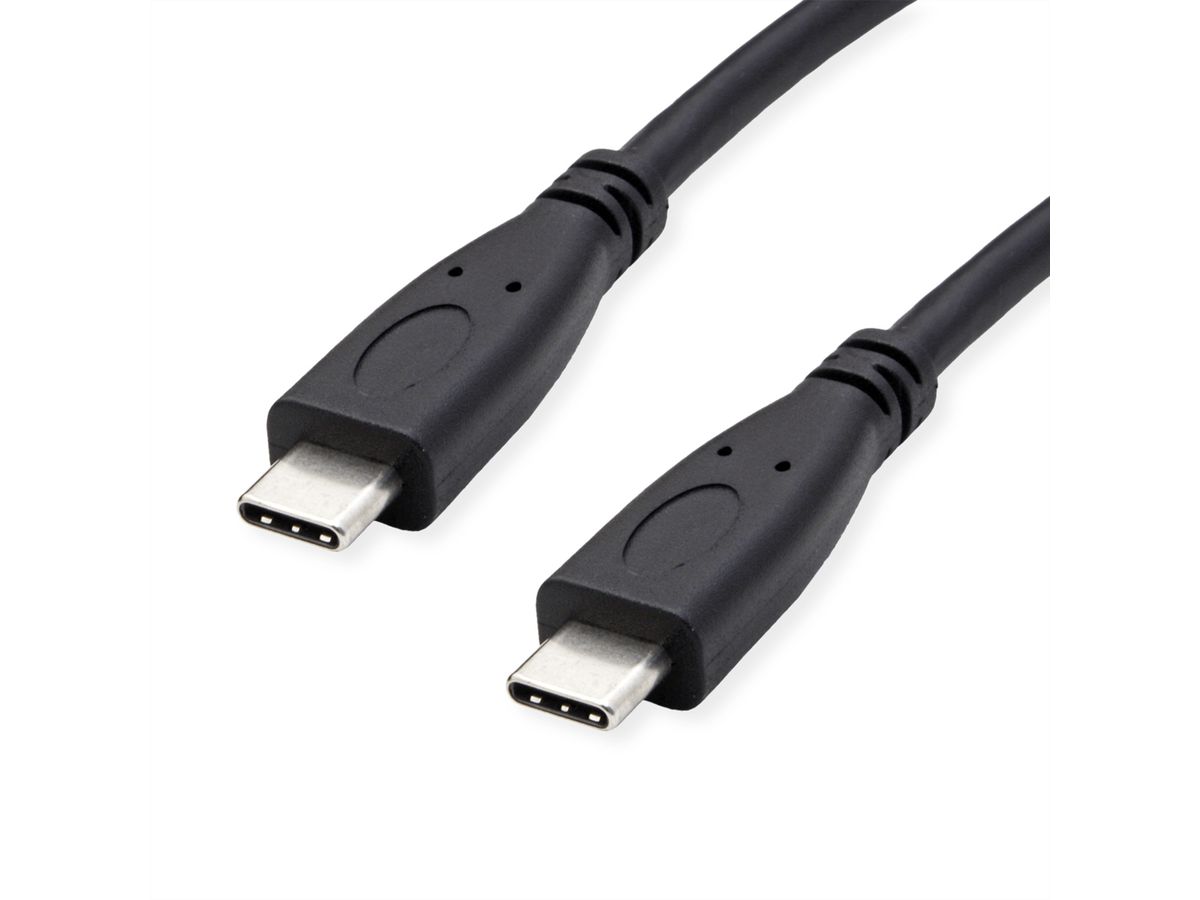

Full-featured USB 3.1 / USB 3.2 Gen 2 cable with a data transmission rate of up to 10 Gbit/s and full Power Delivery support of up to 20V 5A!

• High quality USB 3.1 / USB 3.2 Gen 2 cable with improved shielding
• With the new reversible Type C connectors at both ends
• Gold-plated contacts for low wear at high plugging cycles
• Suitable for data transfer rates of up to 10 Gbit/s

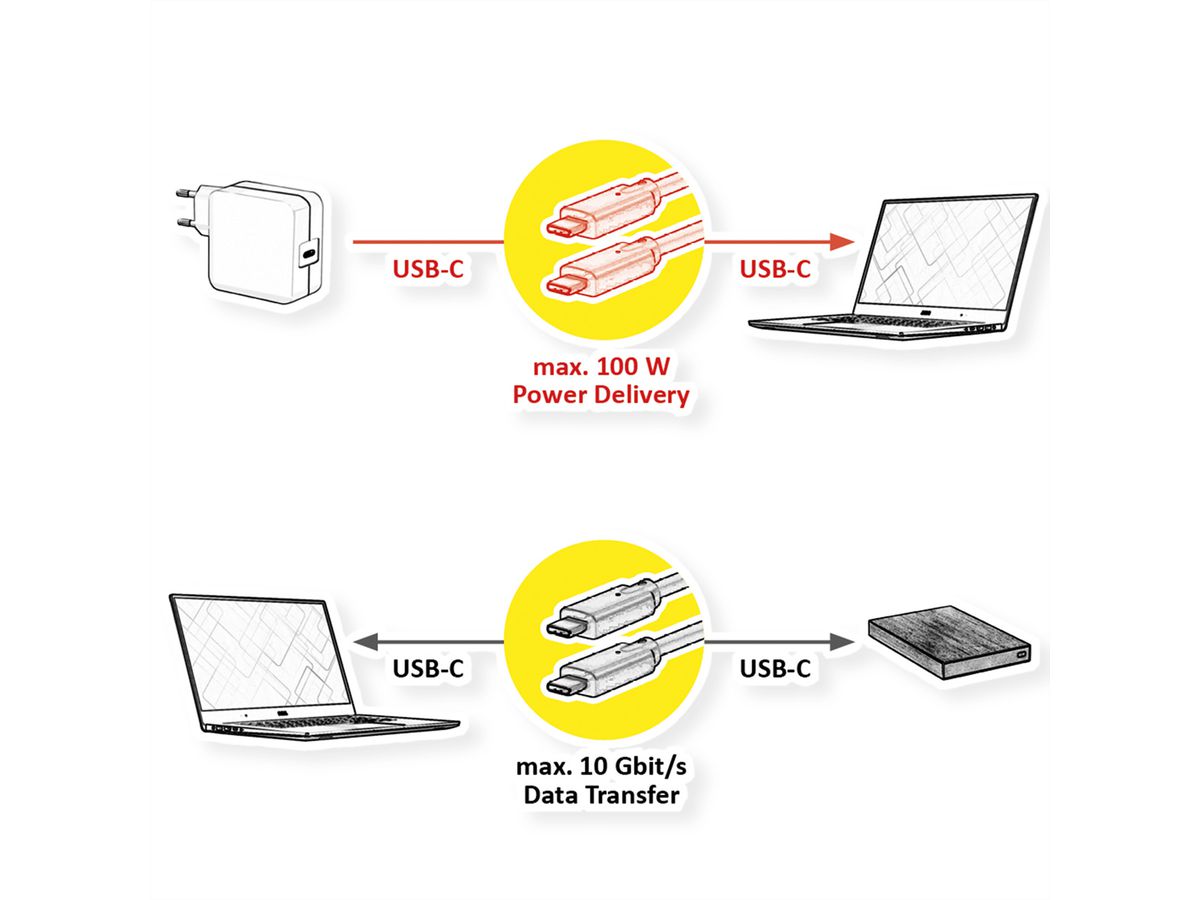

• Supports USB Power Delivery to 20V / 5A
• Supports video transfer

ROLINE GREEN products are marked only with a paper tag and build with halogen-free TPE material, without plastic bags and without plastic cable straps for use in eco-friendly environments.

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	ROLINE GREEN
Product group	Cable
Product type	USB 3.2 Cable
Colour	black
Length	1 m
Scope of delivery	Cable without plastic bag, only marked with a paper label
Transfer quality	USB 3.2 Gen 2 SuperSpeed 10 Gbit/s (USB 3.1 Gen 2, USB 3.1)
Connection ports	USB Type C (USB-C) Male / USB Type C (USB-C) Male
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	USB Type C (USB-C)
Side 2 Connector Gender	Male
Colour (Cable)	black
Maximum data transfer rate	10 Gbit/s
Area of application	External
Supported charging technology	USB-PD - USB Power Delivery
Power (max.)	100 W
Cable shielding	Screened
Hand locking screws	no
Material (external cable mantle)	TPE
Cable LSOH	halogen-free
Weight	44.4 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	100 mm
Package weight (single piece)	0.005 kg

Downloads

Product data sheet - English (50.9 KB)

Download

Help our environment and avoid unnecessary plastic waste



For our ROLINE GREEN series, we have selected a number of well-known ROLINE quality products for which we do not use plastic bags and plastic cable ties.

Instead, the products are only marked with a paper label.

The cables themselves are made of halogen-free TPE material to avoid the classic sheath material PVC.

More about ROLINE GREEN
