Description

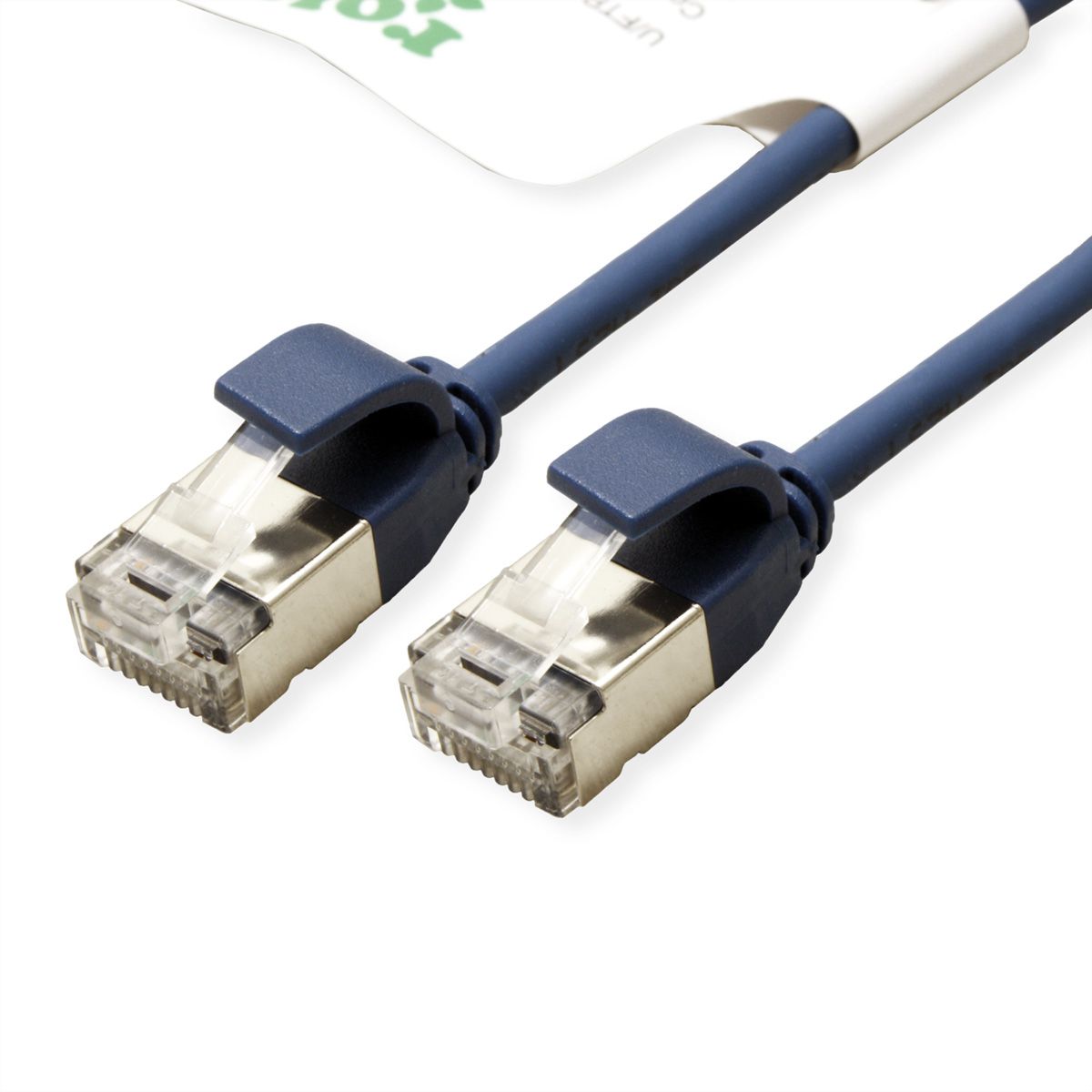

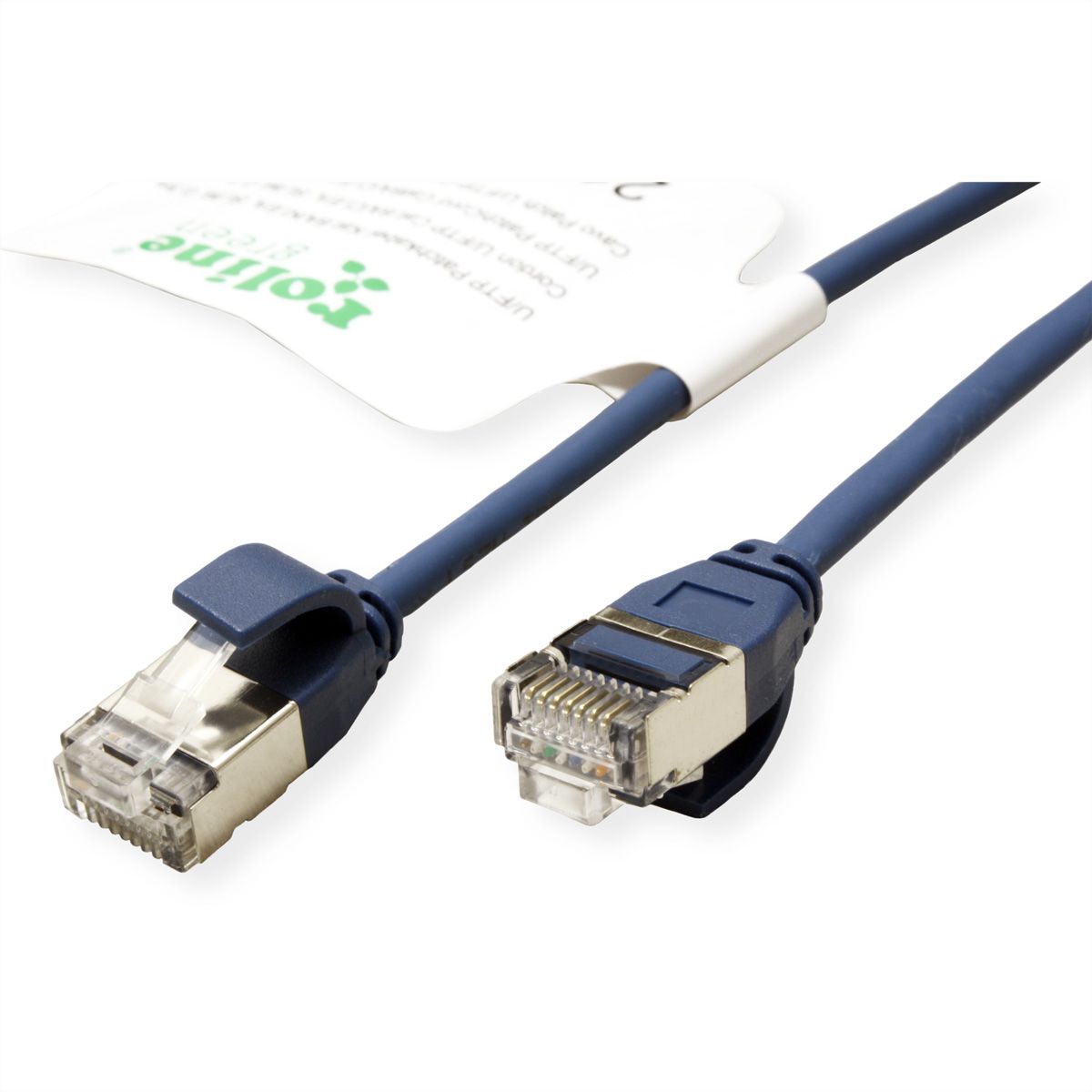

Category 6a twisted-pair patch cable with shielded RJ-45 connectors on both sides. Particularly thin and flexible cable with individual pairs of wires in aluminium-laminated foil for use in confined spaces, such as in data centres.

• Durable thanks to moulded-on kink protection
• Suitable as patch cable in patch panels or as device connection cable and intended for use in the LAN
• Contact assignment: 1:1 according to EIA/TIA568, 8 cores
• Structure: 8 cores stranded wire, pairs shielded with alu-laminated foil

ROLINE GREEN products are marked only with a paper tag and build with halogen-free TPE material, without plastic bags and without plastic cable straps for use in eco-friendly environments.

Specifications

Manufacturer	ROLINE GREEN
Product group	Twisted Pair Cable
Product type	FTP Patch Cord
Colour	blue
Length	0.3 m
Scope of delivery	Cable without plastic bag, only marked with a paper label
Shield type	FTP
Transfer quality	Cat6A / Class EA
Quantity of wires	8
Conductor cross section (AWG)	AWG 32
Conductor type	Stranded
Crossed	no
Slim cable	yes
Locking lever	yes
Anti-kink sleeve	Moulded-on
Colour (Spout)	blue
Cable LSOH	yes
Material (external cable mantle)	LSOH-TPE
Side 1 Connector Type	RJ-45
Side 1 Connector Gender	Male
Side 2 Connector Type	RJ-45
Side 2 Connector Gender	Male
Connector Type RJ45	Standard
Operating temperature min.	-10 °C
Operating temperature max.	60 °C
Storage temperature min.	-20 °C
Storage temperature max.	75 °C
Weight	11.9 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.01 kg

Downloads

Product data sheet - English (69.4 KB)

Download

Manufacturer data sheet - English (270.6 KB)

Download

Help our environment and avoid unnecessary plastic waste



For our ROLINE GREEN series, we have selected a number of well-known ROLINE quality products for which we do not use plastic bags and plastic cable ties.

Instead, the products are only marked with a paper label.

The cables themselves are made of halogen-free TPE material to avoid the classic sheath material PVC.
