Description

Mirror or expand the screen of your device to any monitor or projector/beamer with VGA connection - with a resolution of up to 1920x1080 @60Hz!

• USB 3.1 / USB 3.2 Gen 2 Type C to VGA cable adapter

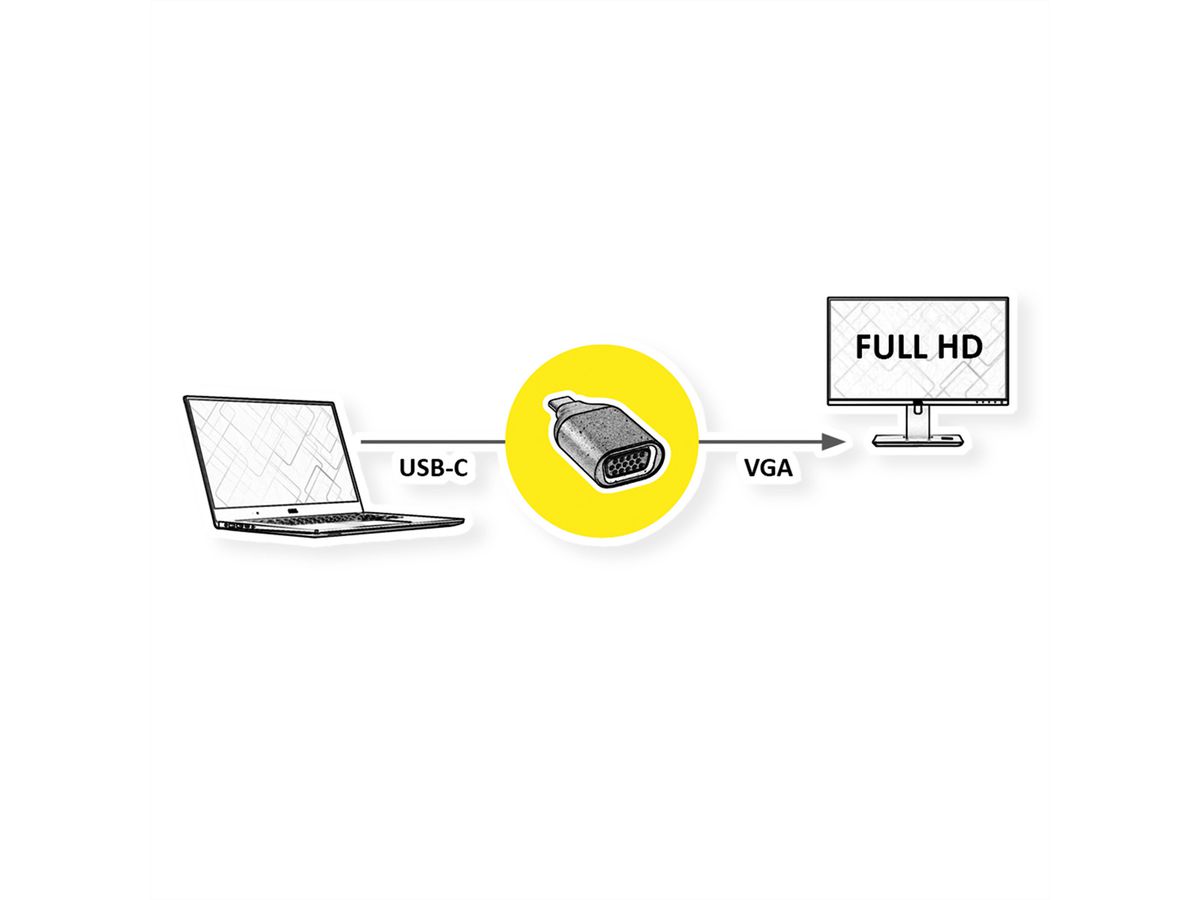

• Connect any monitor or beamer/projector with VGA connection to your Macbook, Ultrabook, notebook/laptop or mobile device with USB Type C connection.
• To mirror or expand your display to another display device
• Compact aluminium housing
• No power supply required
• Connections: VGA socket and type C plug

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	USB-VGA Adapter
Colour	black / gold
Max. resolution	1920 x 1080 @60Hz (2K, Full HD)
Side 1 connection (PC)	Typ C Male
Side 2 connection (Peripherals)	VGA Female
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender	Female
Area of application	External
Height	24.2 mm
Width	13.2 mm
Depth	38 mm
Weight	8.6 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	100 mm
Package weight (single piece)	0.02 kg

Downloads

Product data sheet - English (45.7 KB)

Download

Manufacturer data sheet - English (191.9 KB)

Download
