The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21159490_2018_m_0_hi.jpg "ROLINE FO Jumper Cable Duplex, 50/125µm OM4, LSH/LSH, UPC Polish, LSOH, violet, 0.5 m")

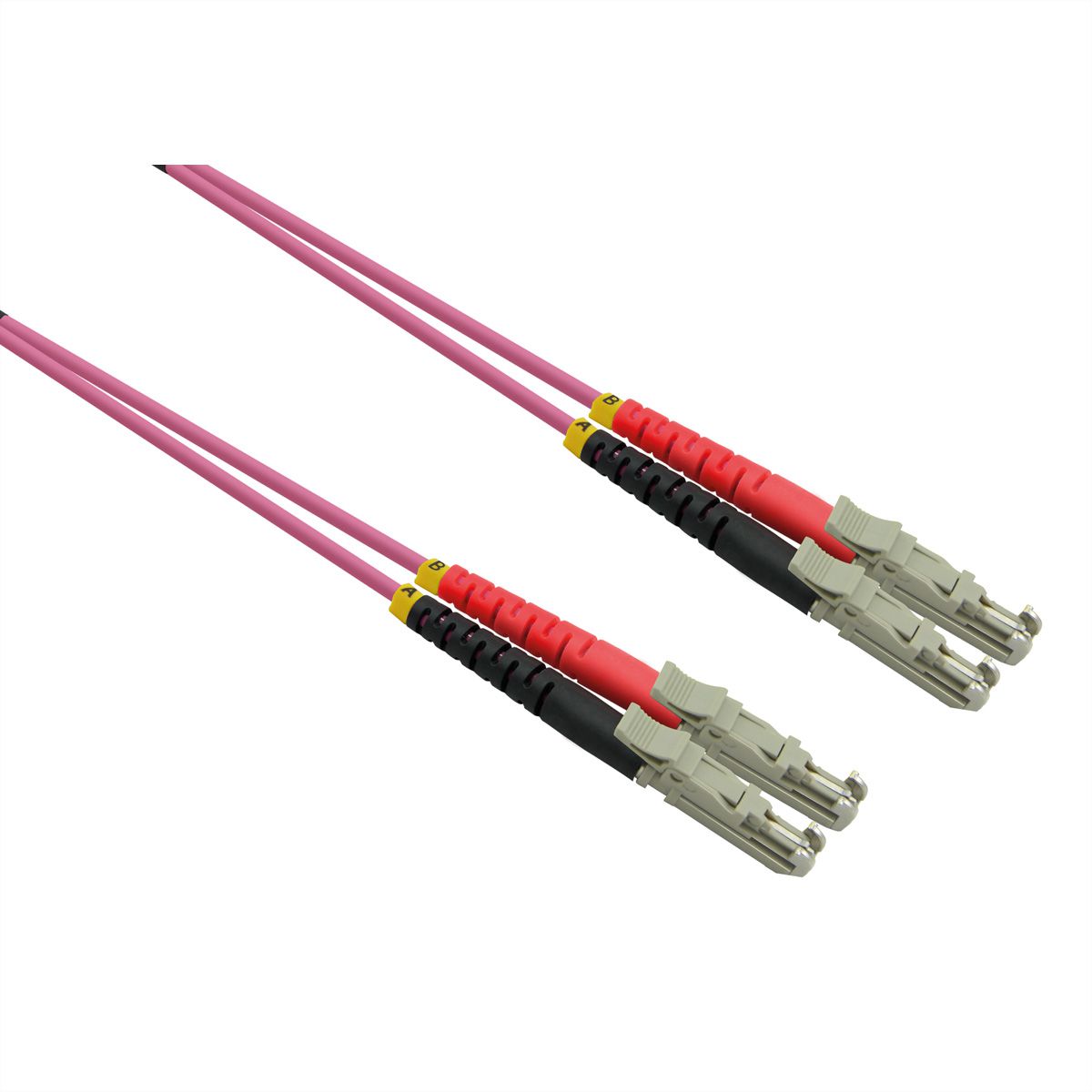

ROLINE FO Jumper Cable Duplex, 50/125µm OM4, LSH/LSH, UPC Polish, LSOH, violet, 0.5 m
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.15.9490-10 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.15.9490 |
| EAN | 7611990952380 |
| Package weight | 0.054 kg |
| Colour | |
| Length |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
High-quality fibre optic cable with the high protective, secured LSH connection on both sides - both connections are UPC polished.
- Duplex cable with 50/125µm OM4 fibre type
- Cable material: sheath halogen-free and flame-retardant, violet, solid core with aramid strain relief
- LSH connector: precisely manufactured connector with low return loss, ceramic ferrule, beige
- The LSH connector has a spring-loaded shutter, which fully protects the ferrule from dust and scratches
- UPC Polish (Ultra Physical Contact)
- IL < 0.25dB, RL > 25dB
- IL (typical) < 0.12dB
- Cable OD (outer diameter): 3.0 x 6.0mm
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Fibre optic cable |
| Product type | Fibre Optic Jumper Cables OM4 |
| Colour | violet |
| Length | 0.5 m |
| Quantity of fibre | 2 |
| Cable type | Duplex Cable |
| External cable | no |
| Fibre section | Multi mode 50/125µm OM4 |
| Connection ports | LSH / LSH |
| Side 1 Connector Type | LSH |
| Side 2 Connector Type | LSH |
| Min. Bending radius, static | 30 mm |
| Min. Bending radius, dynamic | 60 mm |
| Aramid strain relief | yes |
| Cable LSOH | yes |
| Flame retardant according to IEC 60332-1-2 | yes |
| Low smoke according to IEC 61034-2 | yes |
| Halogen free according to IEC 60754-2 | yes |
| Max. insertion loss | 0.2 dB |
| Min. return loss | 30 dB |
| RAL colour | RAL 4003 Heather violet |
| Weight | 22.8 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 200 mm |
| Depth of packaging (single piece) | 200 mm |
| Package weight (single piece) | 0.054 kg |
