Description

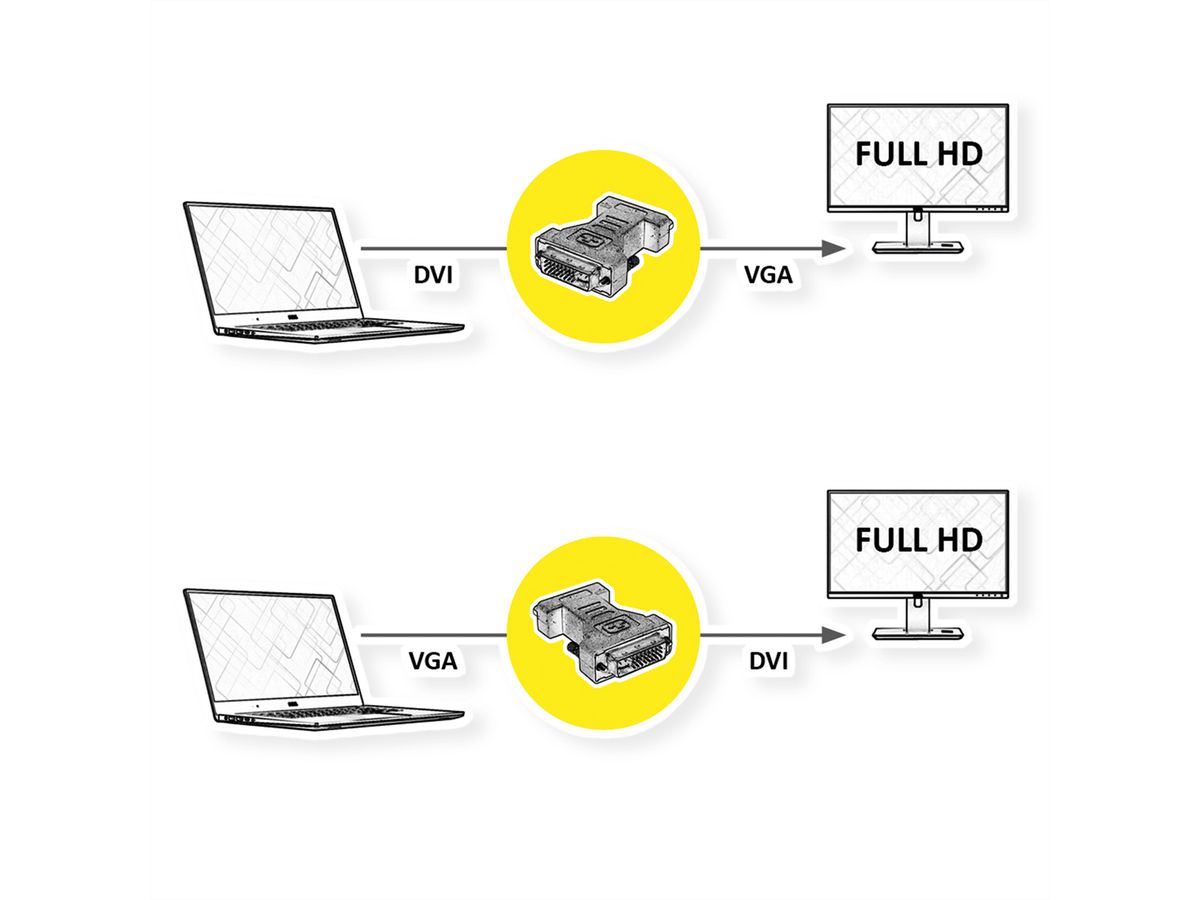

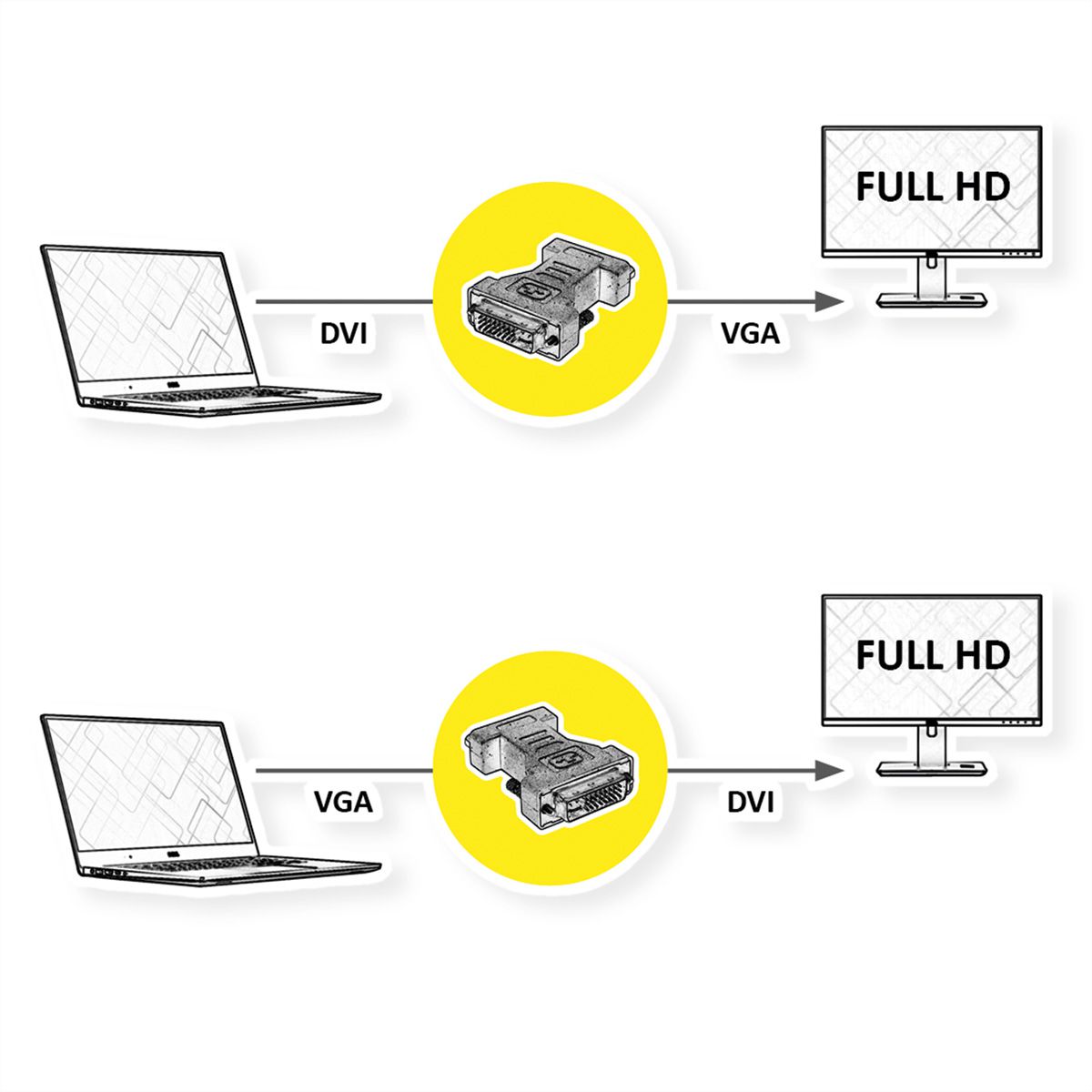

• For connecting a VGA monitor to a DVI graphic card

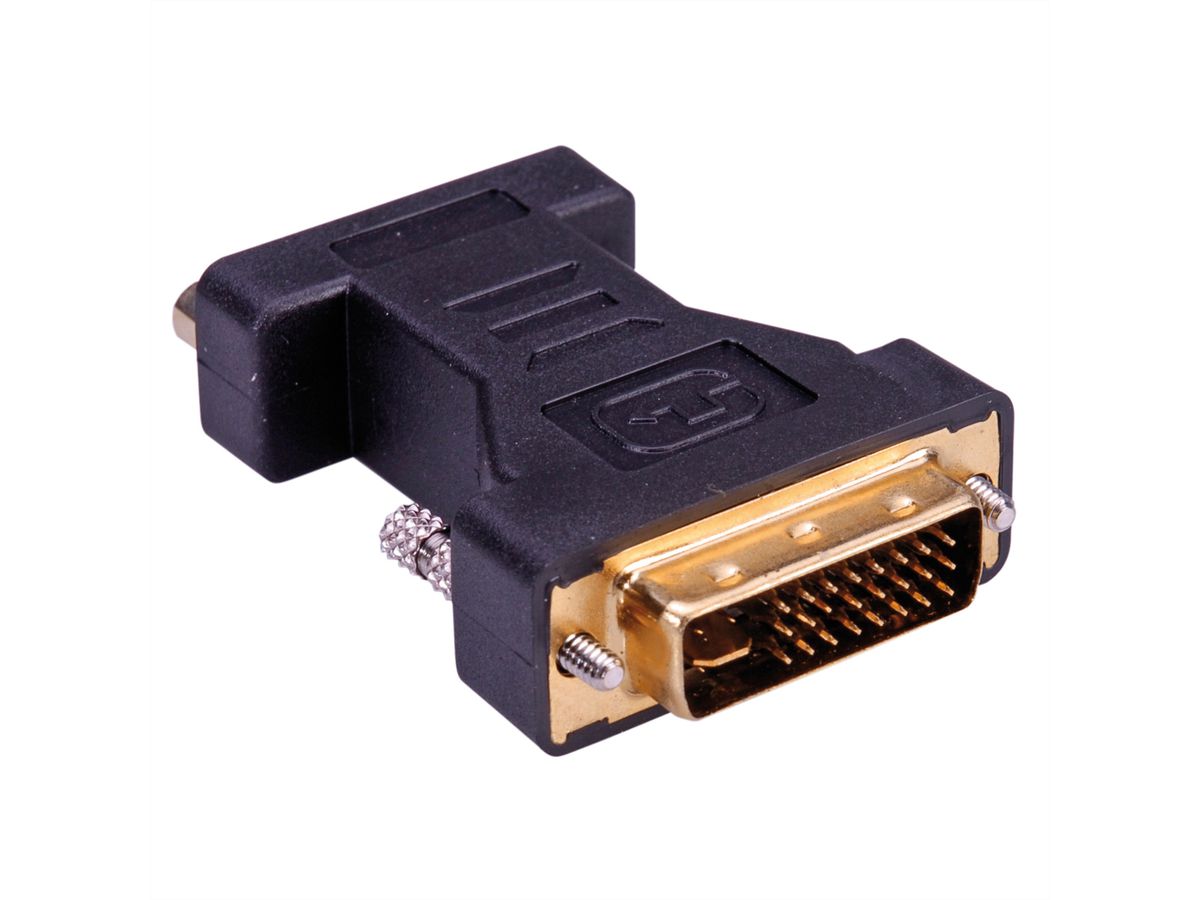

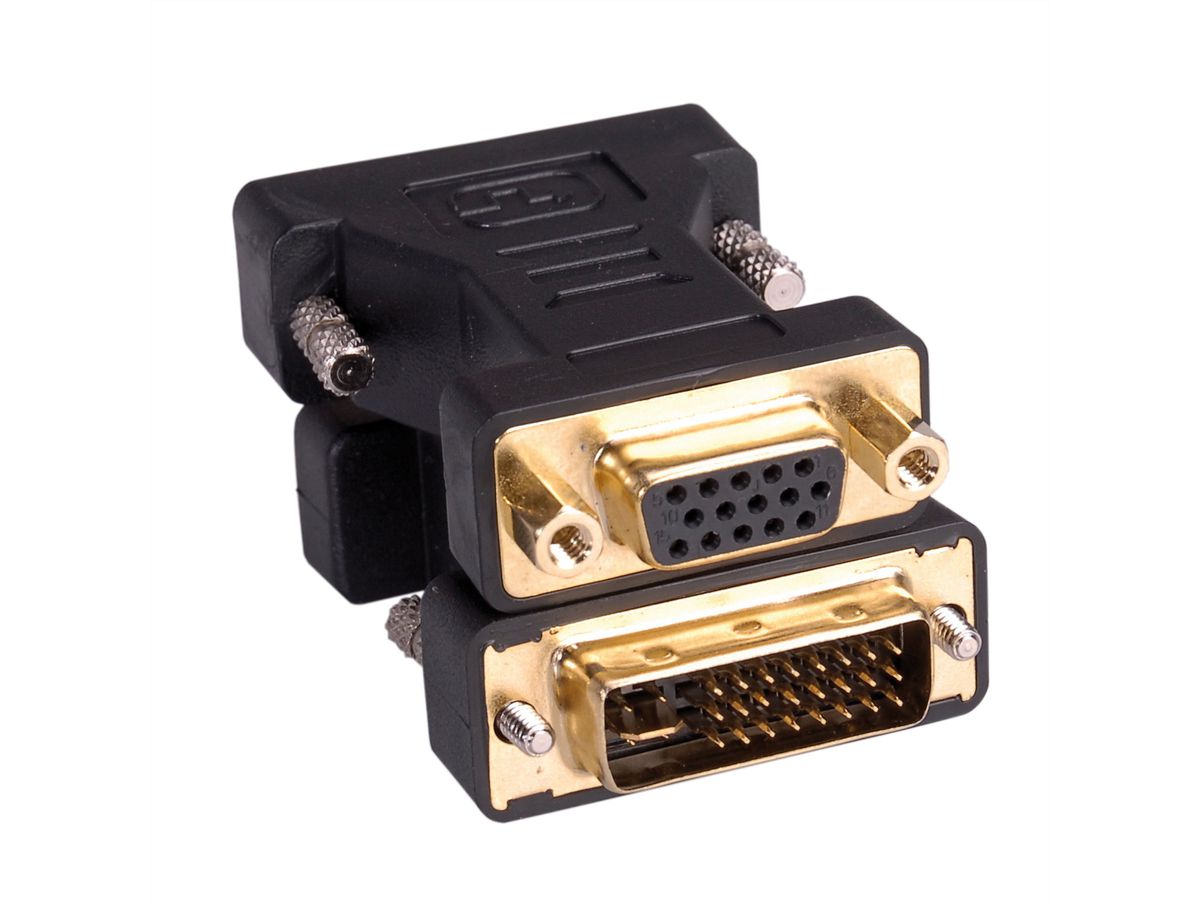

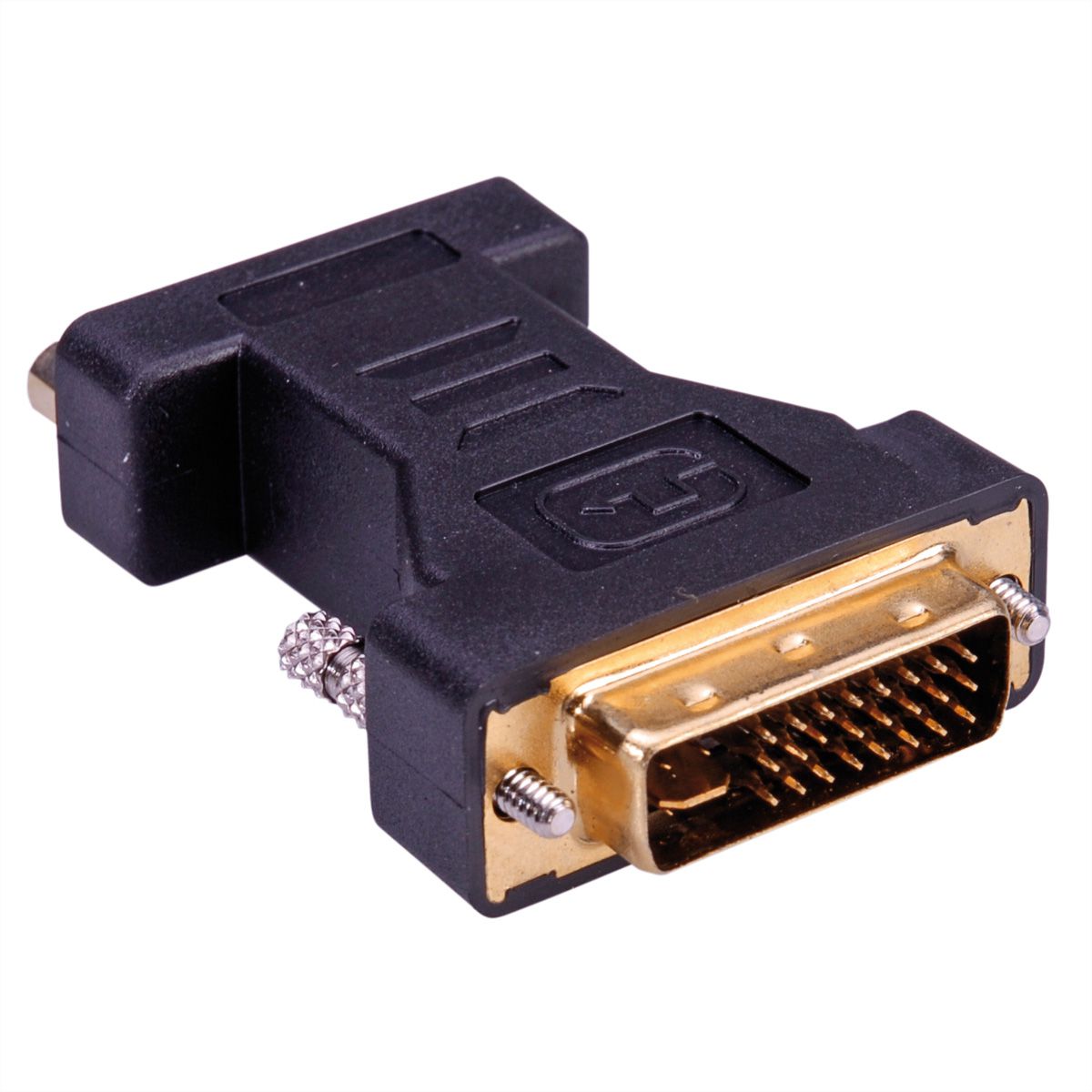

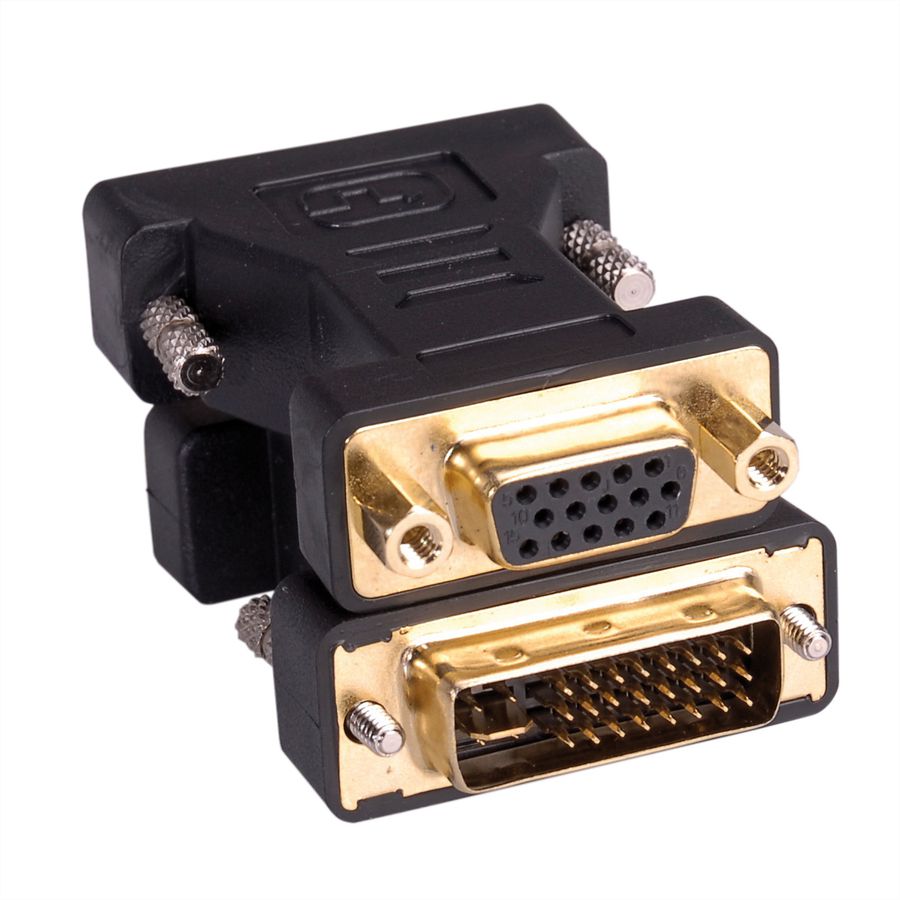

• Adapter with HD15 Female and DVI-I Male

Remark: Product similar to picture

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	DVI-VGA Adapter
Colour	black
Scope of delivery	1x Adapter
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	DVI 24 + 5 Male (DVI-I)
Side 2 connection (Peripherals)	VGA HD15 Female
Side 1 Connector Type	DVI-I 24+5
Side 1 Connector Gender	Male
Side 2 Connector Type	HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender	Female
Active / Passive	Passive
Area of application	External
Dimensions (HxWxD)	16 x 40 x 55 mm
Hand locking screws	yes
Height	16 mm
Width	40 mm
Depth	55 mm
Weight	37.2 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	70 mm
Depth of packaging (single piece)	130 mm
Package weight (single piece)	0.051 kg

Downloads

Product data sheet - English (58.7 KB)

Download

Manufacturer data sheet - English (89.0 KB)

Download
