Description

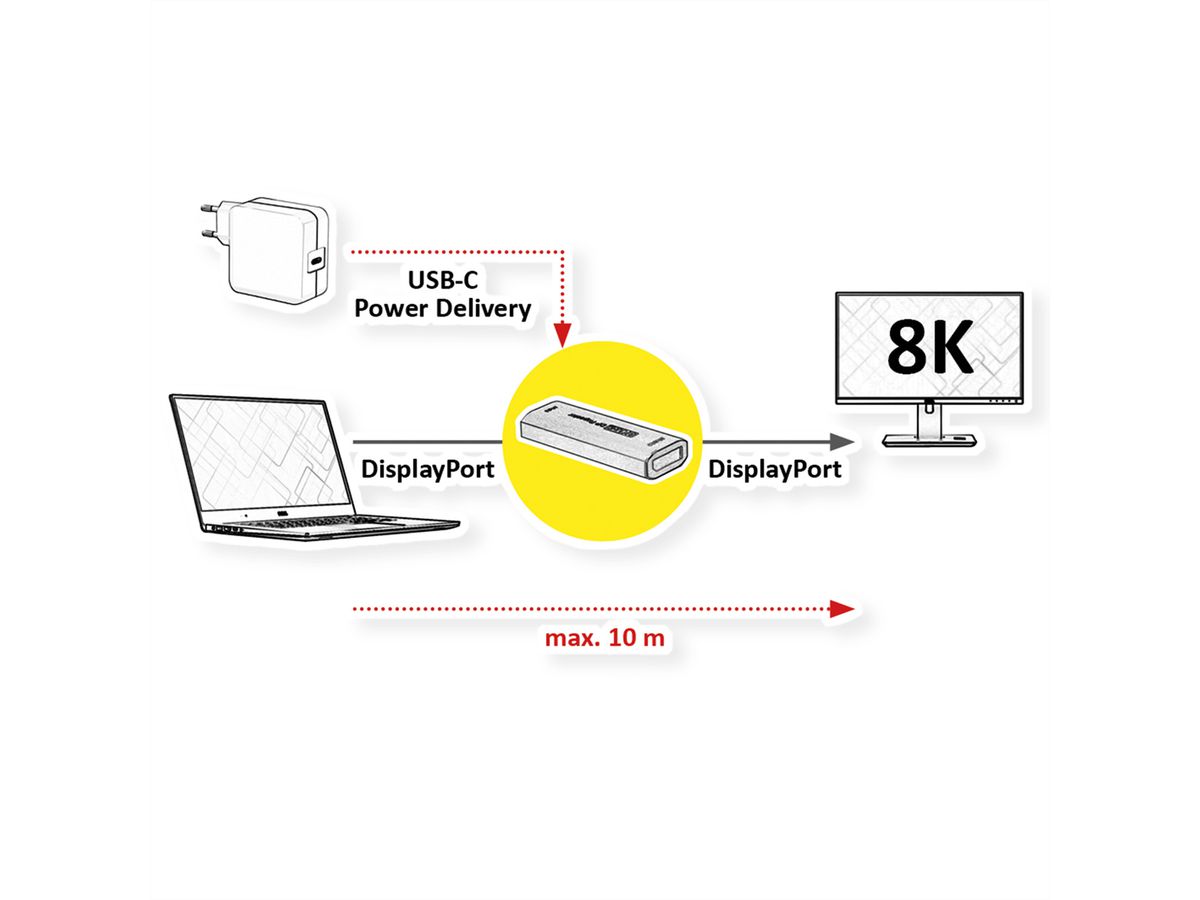

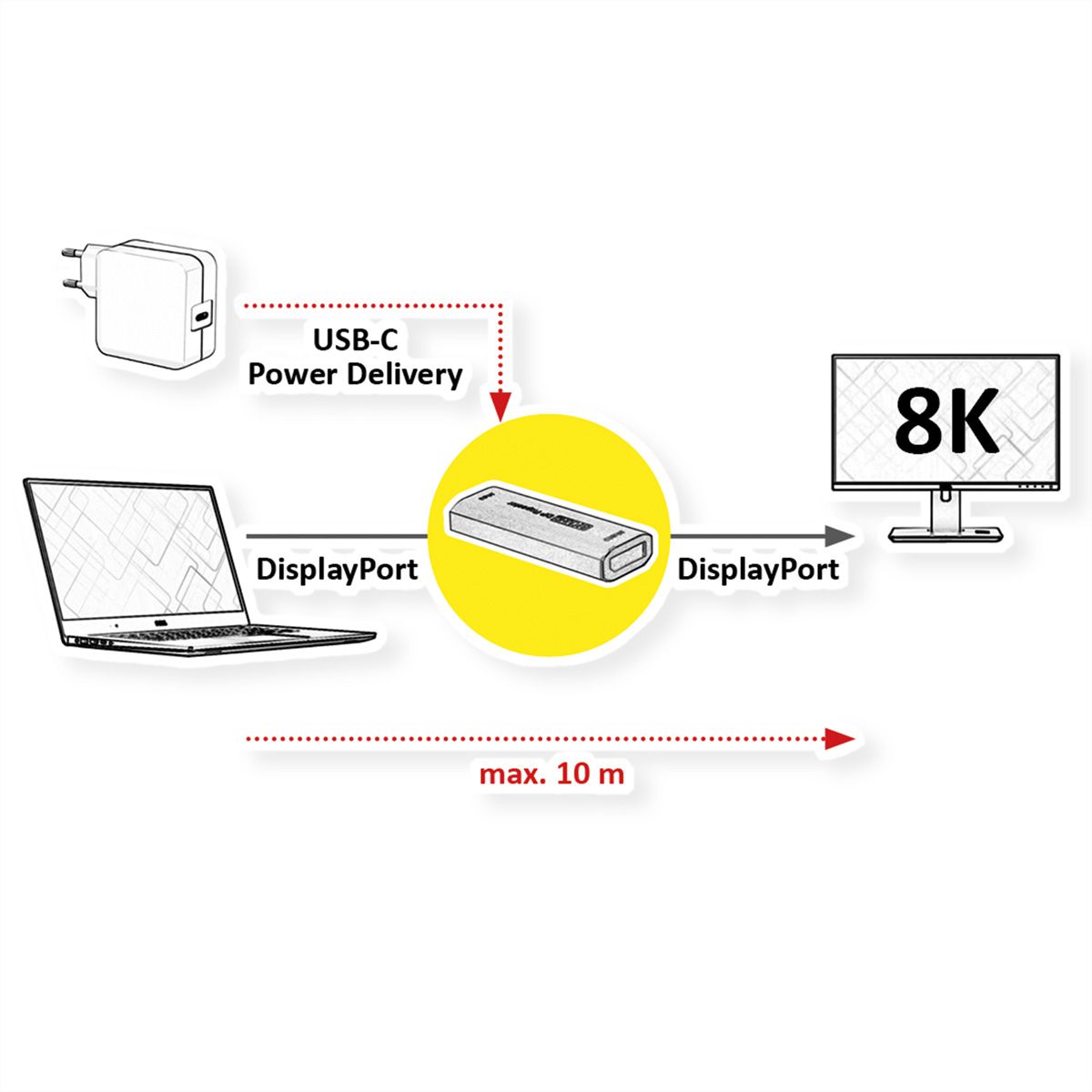

DisplayPort Repeater to create a point-to-point connection to reduce costs for applications that require a single DisplayPort input and output device over long distances - with up to 7680x4320 @60Hz resolution!

• Ideal for display applications in conference rooms, classrooms & training facilities etc.
• Extend the DisplayPort signal up to 10/20 meters (depending on the resolution)
• Supports DisplayPort resolutions up to 8K @60Hz
• Compliant with DisplayPort specification v1.2
• Compliant with HDCP 2.2 & DPCP
• Supports 8K 60Hz (max. length: 5m in; 5m out), 4K 60Hz (max. length: 10m in; 10m out);
• HDTV compatible
• Plug & Play
• Power: via USB C cable (5 VDC, 2A) - not included.

REMARK: Graphics card and display must support display stream compression (DSC) to use HDR 8K@30/60Hz、
4K@120Hz and 2K@240Hz

Specifications

Manufacturer	ROLINE
Product group	Splitters and selectors
Product type	DisplayPort extension
Colour	grey
Scope of delivery	DisplayPort Repeater, Quick Installation Guide
Interface	DP
Max. distance	10 m
Video input	DP
Video output	DP
Max. resolution	7680 x 4320 @60Hz (8K, UHD-2)
Power supply output	DC 5V; 2A
Operating temperature min.	-15 °C
Operating temperature max.	45 °C
Height	10 mm
Width	23 mm
Depth	60 mm
Weight	17 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	20 mm
Depth of packaging (single piece)	70 mm
Package weight (single piece)	0.02 kg
