Description

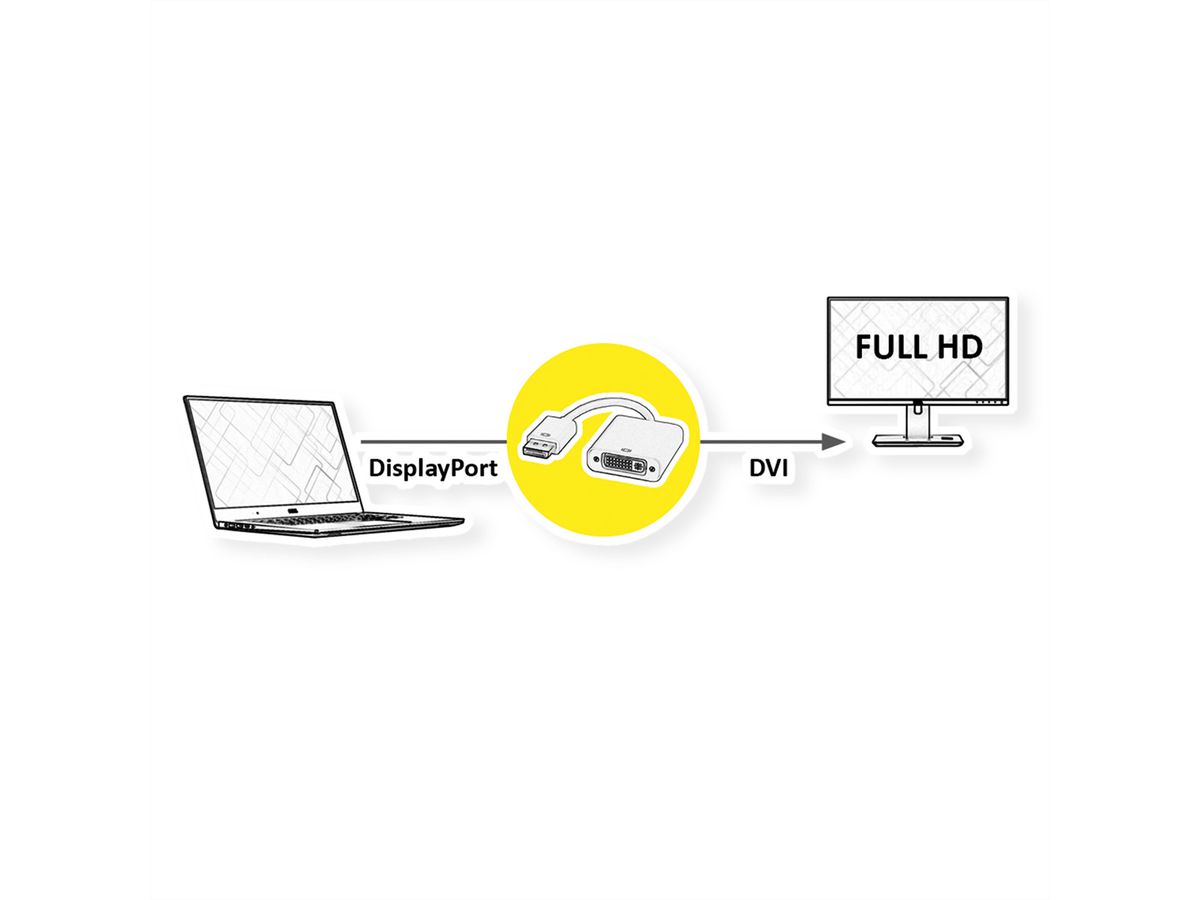

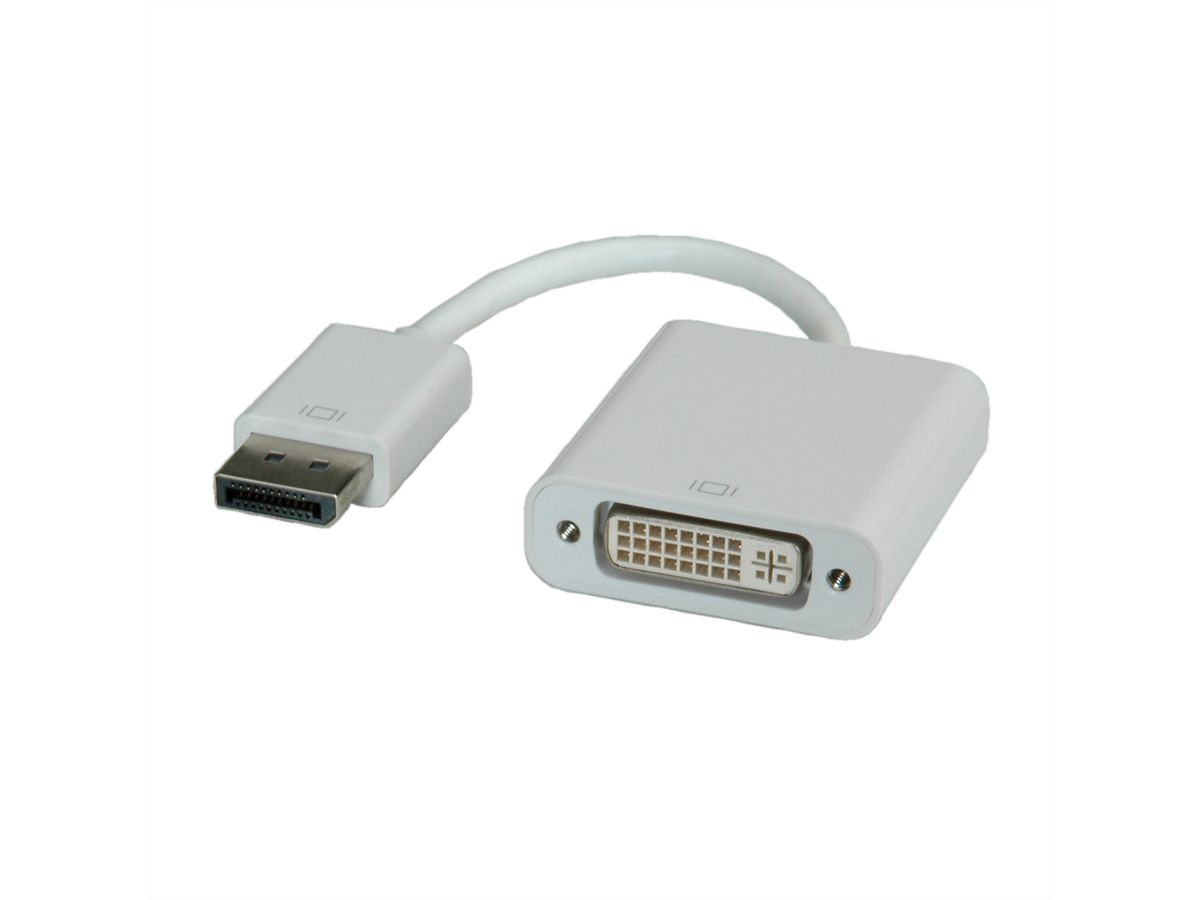

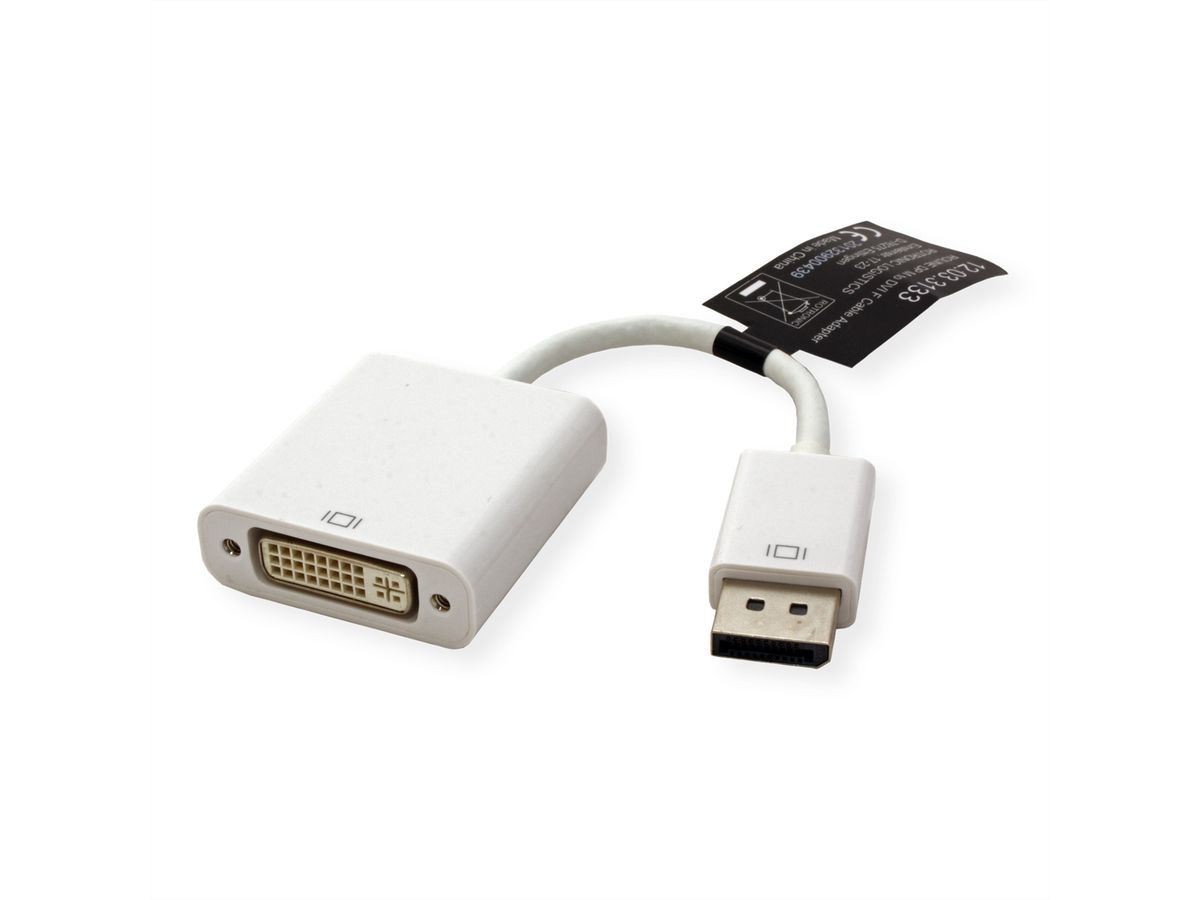

DisplayPort to DVI cable adapter for connecting a graphics card with DP to a monitor with DVI connection - with a resolution of up to 1920x1080 / 1920x1200 @60Hz!

• If you want to connect a graphic card with DisplayPort Female to a monitor by using a DVI cable, you need this DisplayPort to DVI adapter
• Connectors: DisplayPort Male, DVI Female
• Remark: The DisplayPort-DVI adapter is only working in one direction: the DisplayPort plug has to be connected to the source device (e.g. graphic card)
• Max. resolution: 1920x1080 @60Hz

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	DisplayPort-DVI Adapter
Colour	grey
Length	0.15 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 connection (PC)	DisplayPort Stecker
Side 2 connection (Peripherals)	DVI F
Side 1 Connector Type	DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	DVI-D 24+1, Dual-Link
Side 2 Connector Gender	Female
Active / Passive	Passive
Area of application	External
Weight	38.8 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	250 mm
Package weight (single piece)	0.05 kg

Downloads

Product data sheet - English (48.2 KB)

Download

Manufacturer data sheet - English (939.6 KB)

Download
