Description

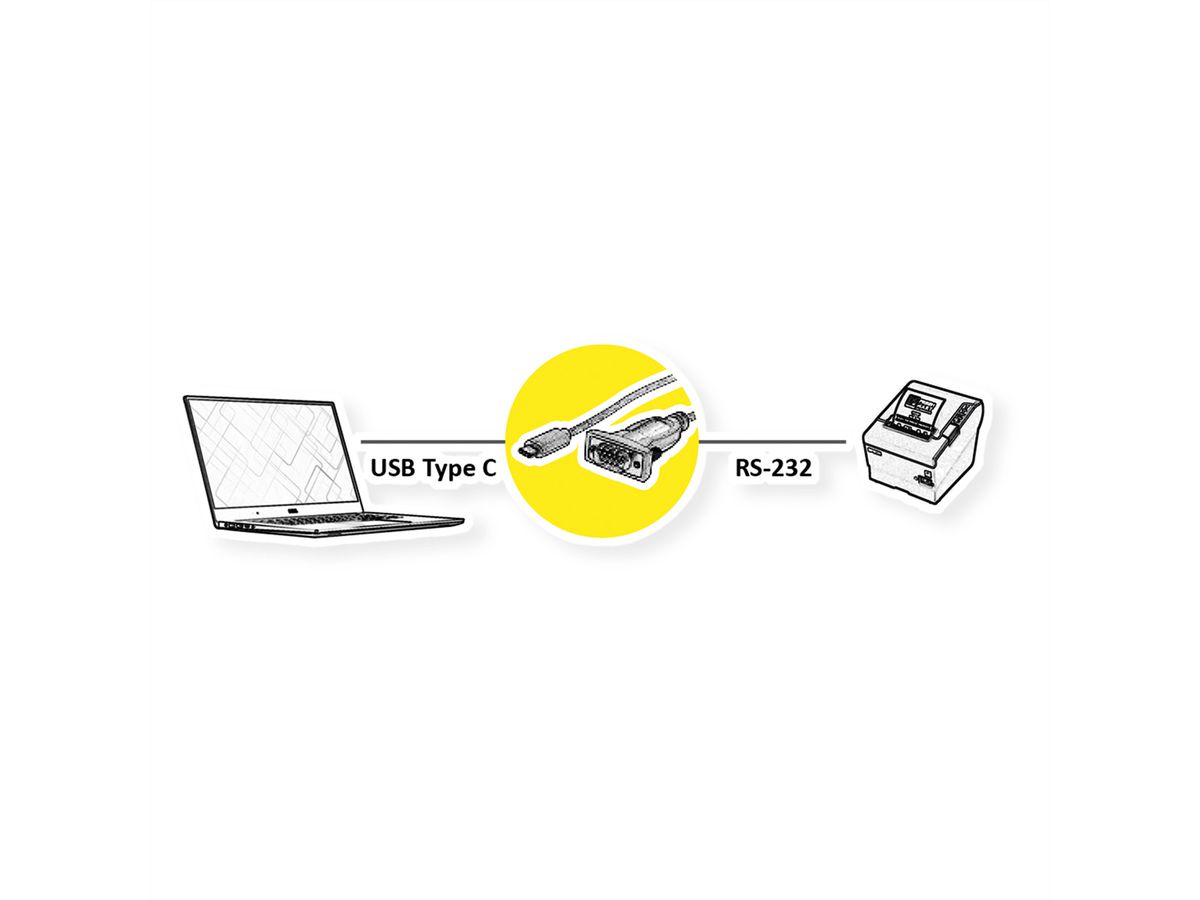

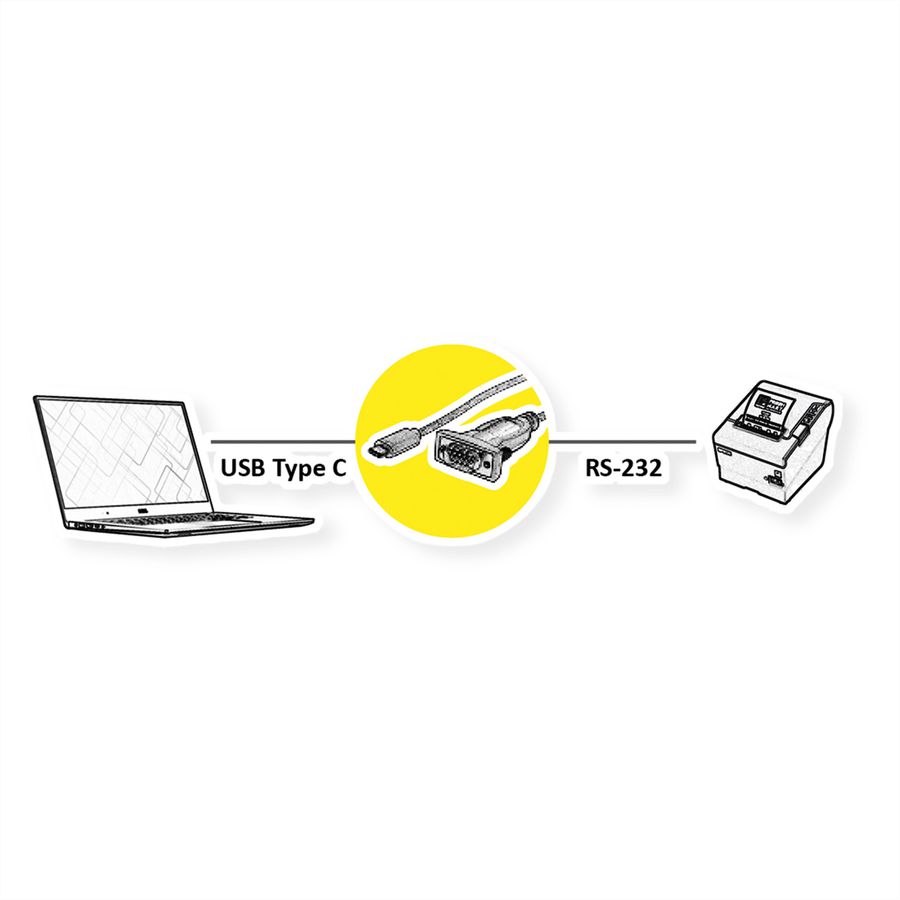

Quick solution for the use of peripheral devices with serial interfaces (e.g. modems, printers) with notebooks or computers with USB interface using a USB Type C connector

• Full compliance with USB 2.0, USB 1.1
• Data transfer rate of over 1Mbit/s
• Supports RS-232 serial interface
• Supports automatic handshake mode
• Supports remote wakeup and power management
• Power Mode: Bus-powered
• Connections: 1x USB Type C, 1x DB 9-pin connector
• Supported Operating Systems: Windows 98, 2000, XP, Vista, Win 7 / 8 / 10, Mac OS X

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	USB - Serial Converter
Colour	black
Length	1.8 m
Scope of delivery	Converter cable, adapter DB9 F-DB25 M, driver CD
Side 1 connection (PC)	USB C Male
Side 2 connection (Peripherals)	DB9 Male
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	D-Sub 9-pin (DE-9)
Side 2 Connector Gender	Male
Conversion direction	seriell - USB
Area of application	External
Dimensions (HxWxD)	Cable lengh 1.8 m
Hand locking screws	yes
Weight	72.5 g
Height of packaging (single piece)	50 mm
Width of packaging (single piece)	130 mm
Depth of packaging (single piece)	190 mm
Package weight (single piece)	0.2 kg

Downloads

Product data sheet - English (45.2 KB)

Download

Manufacturer data sheet - English (319.6 KB)

Download
