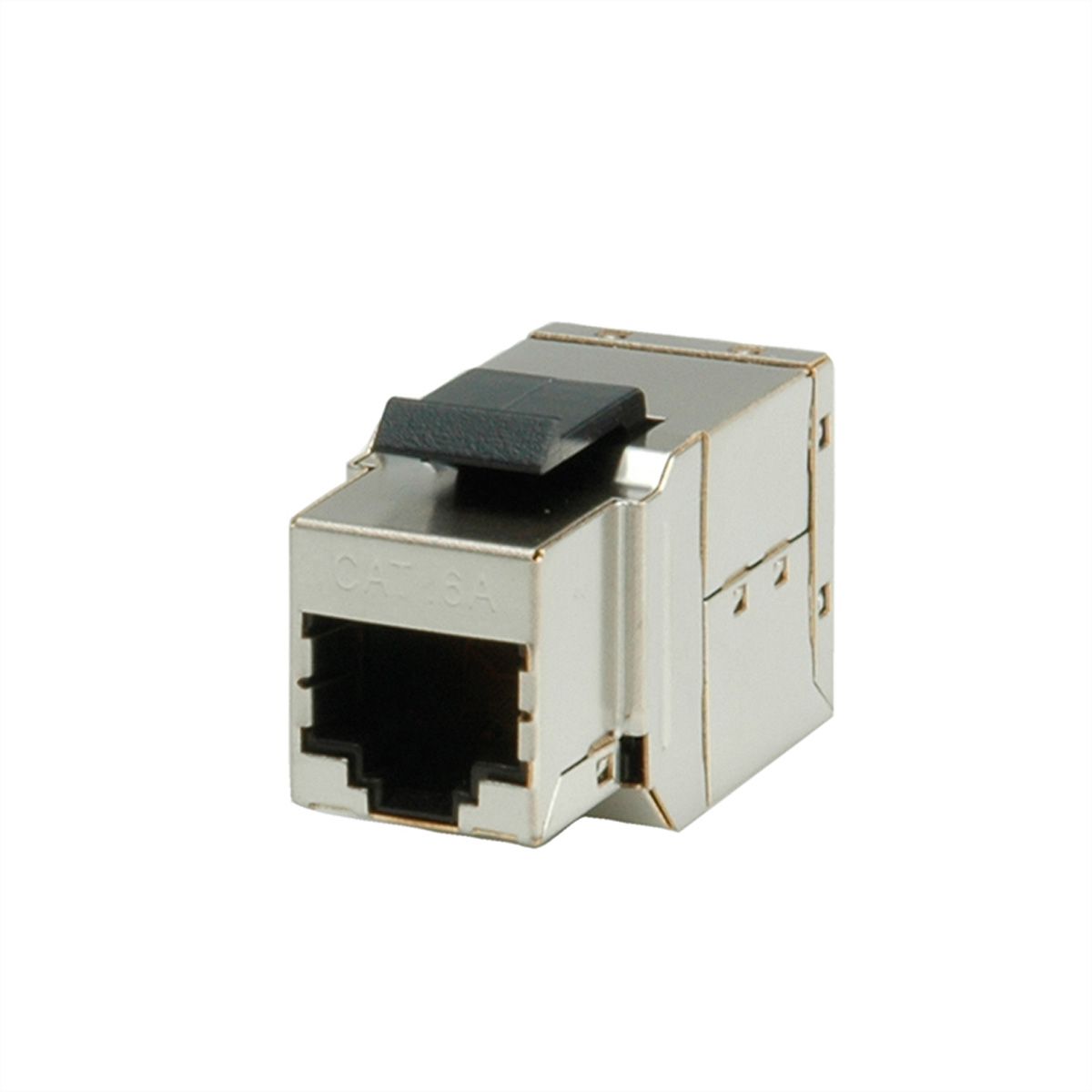

Description

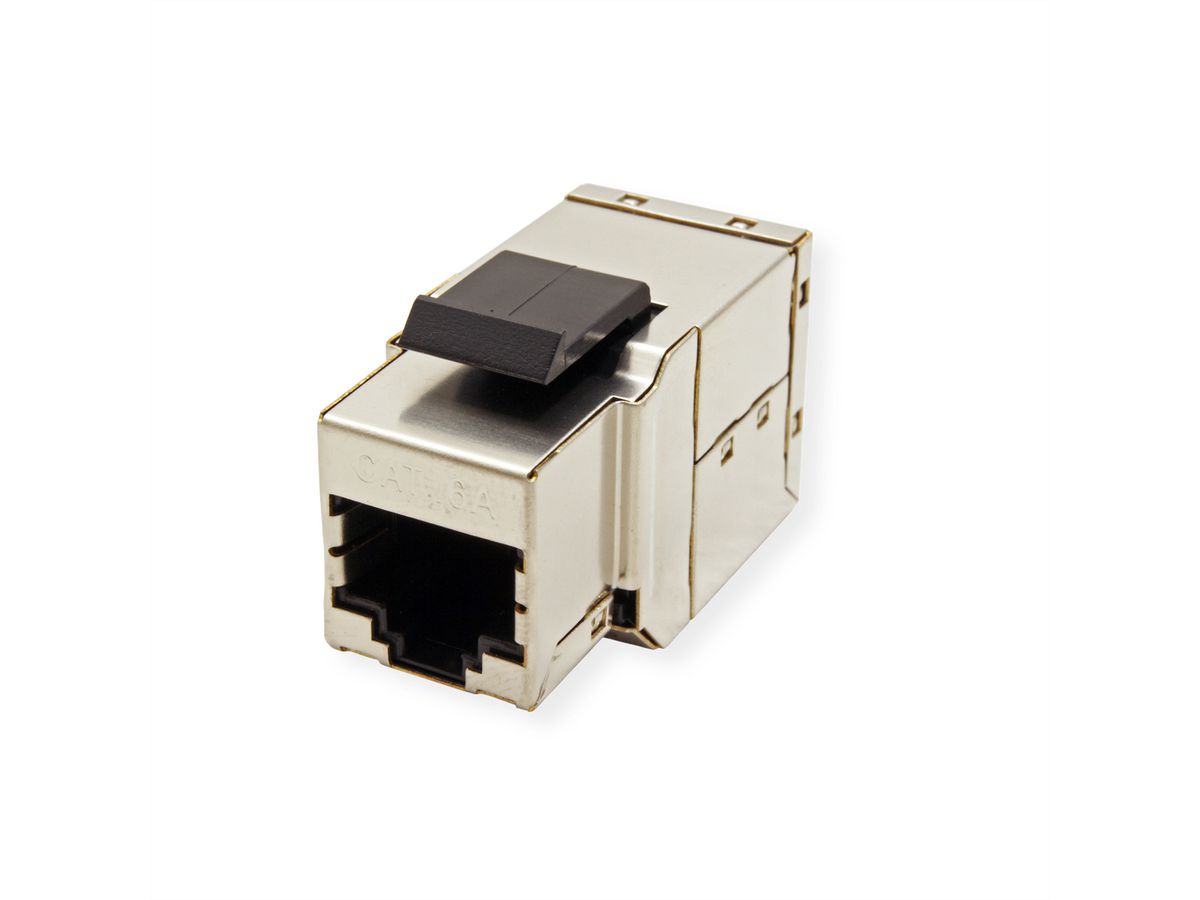

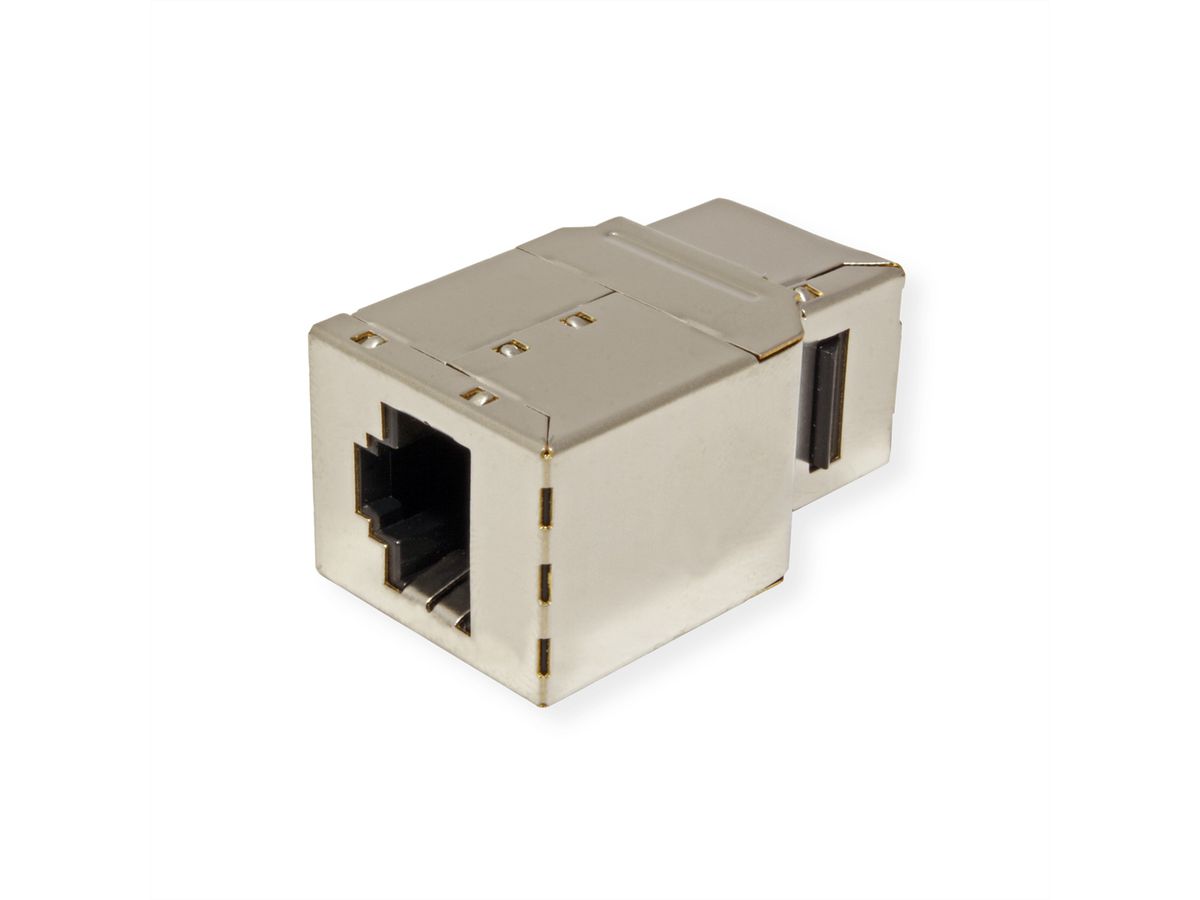

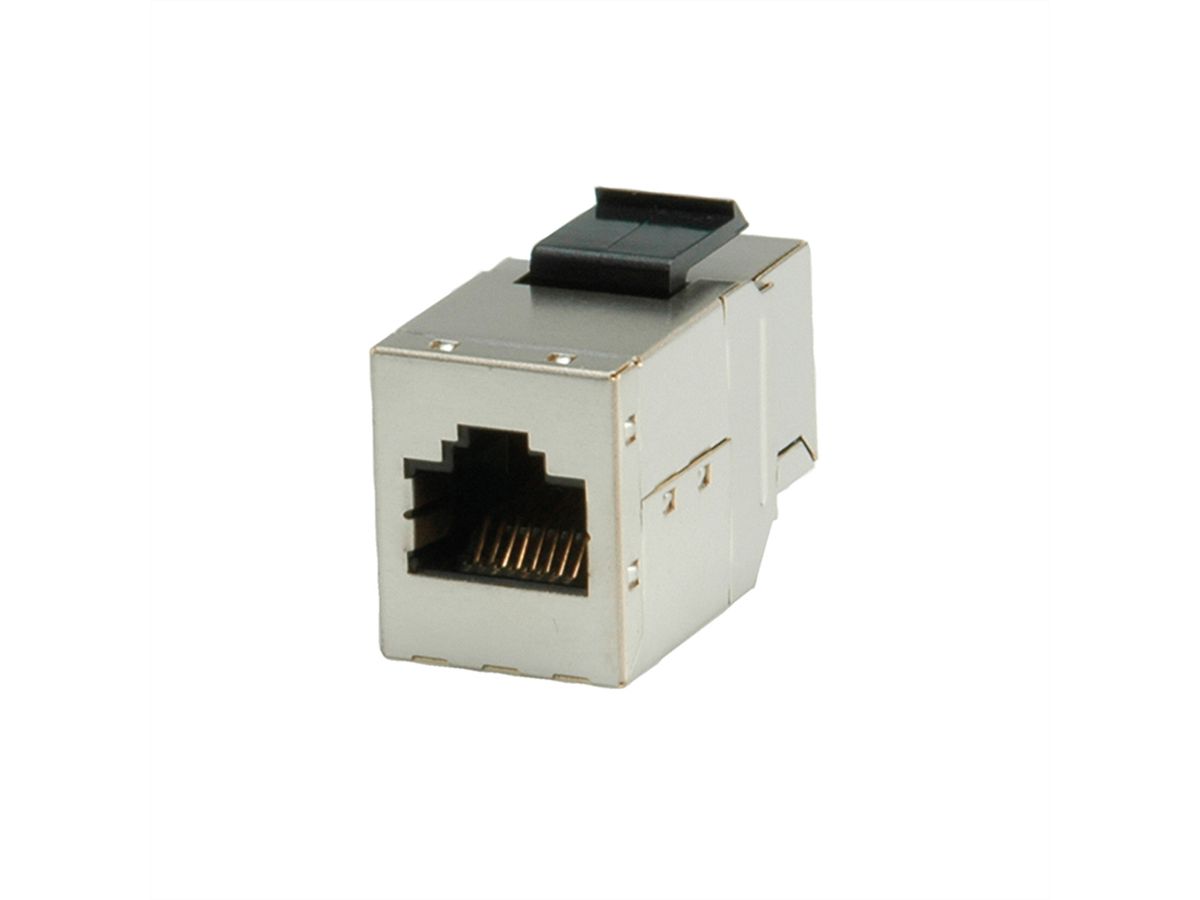

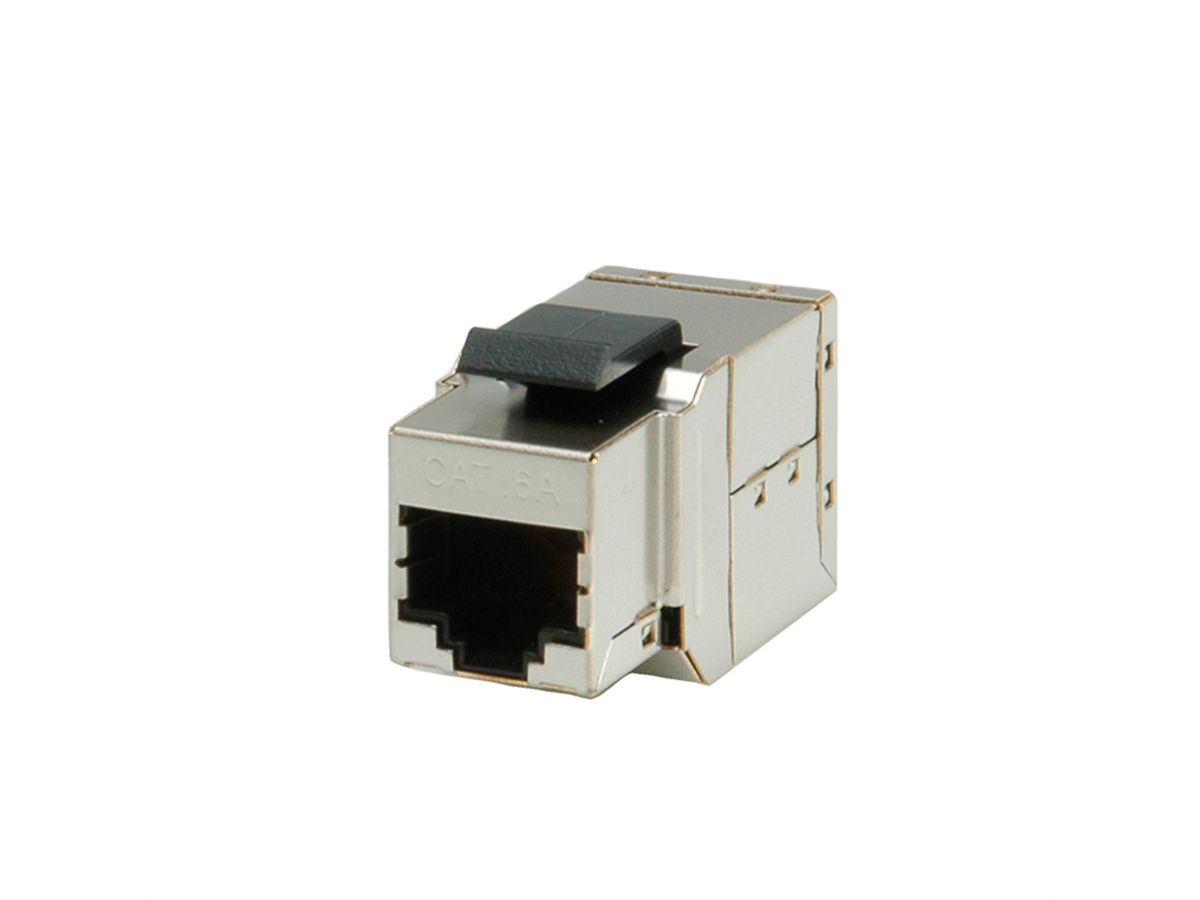

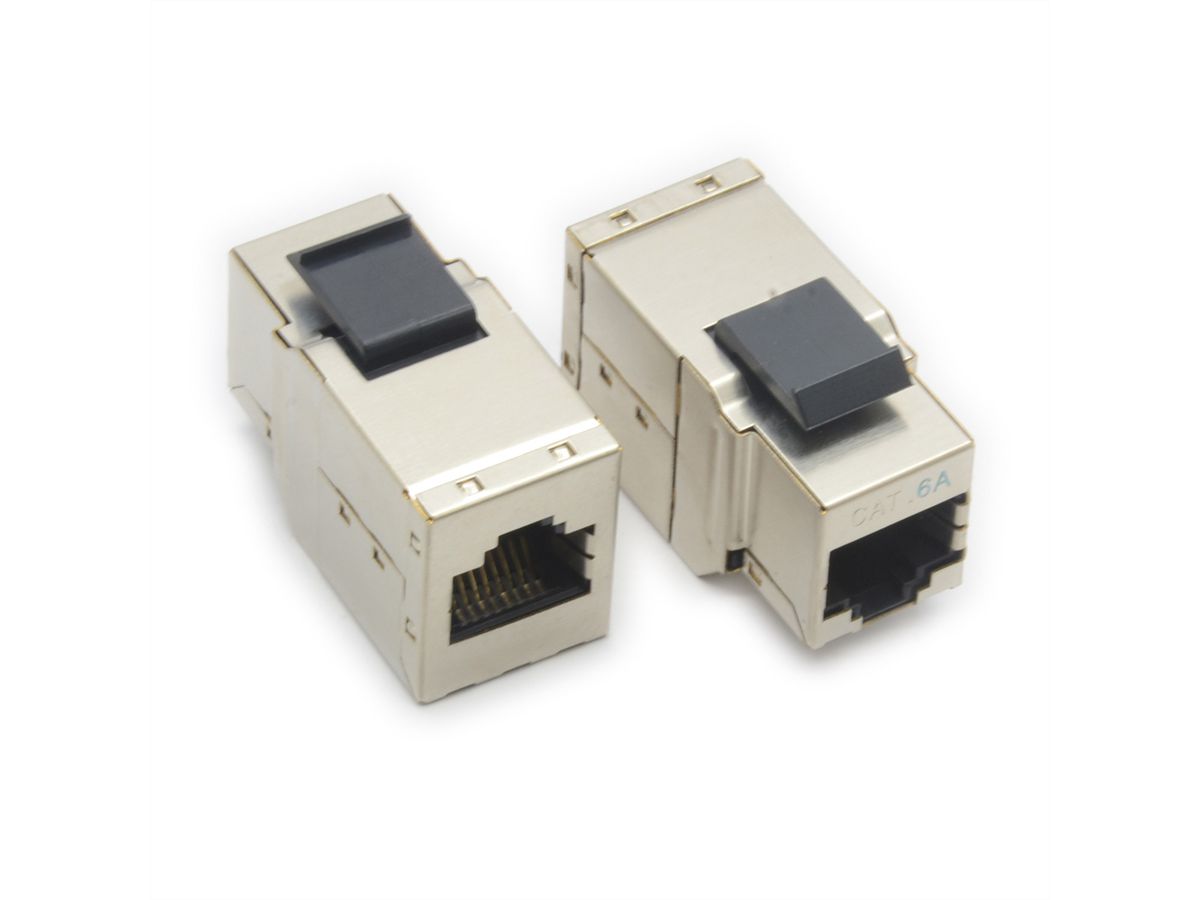

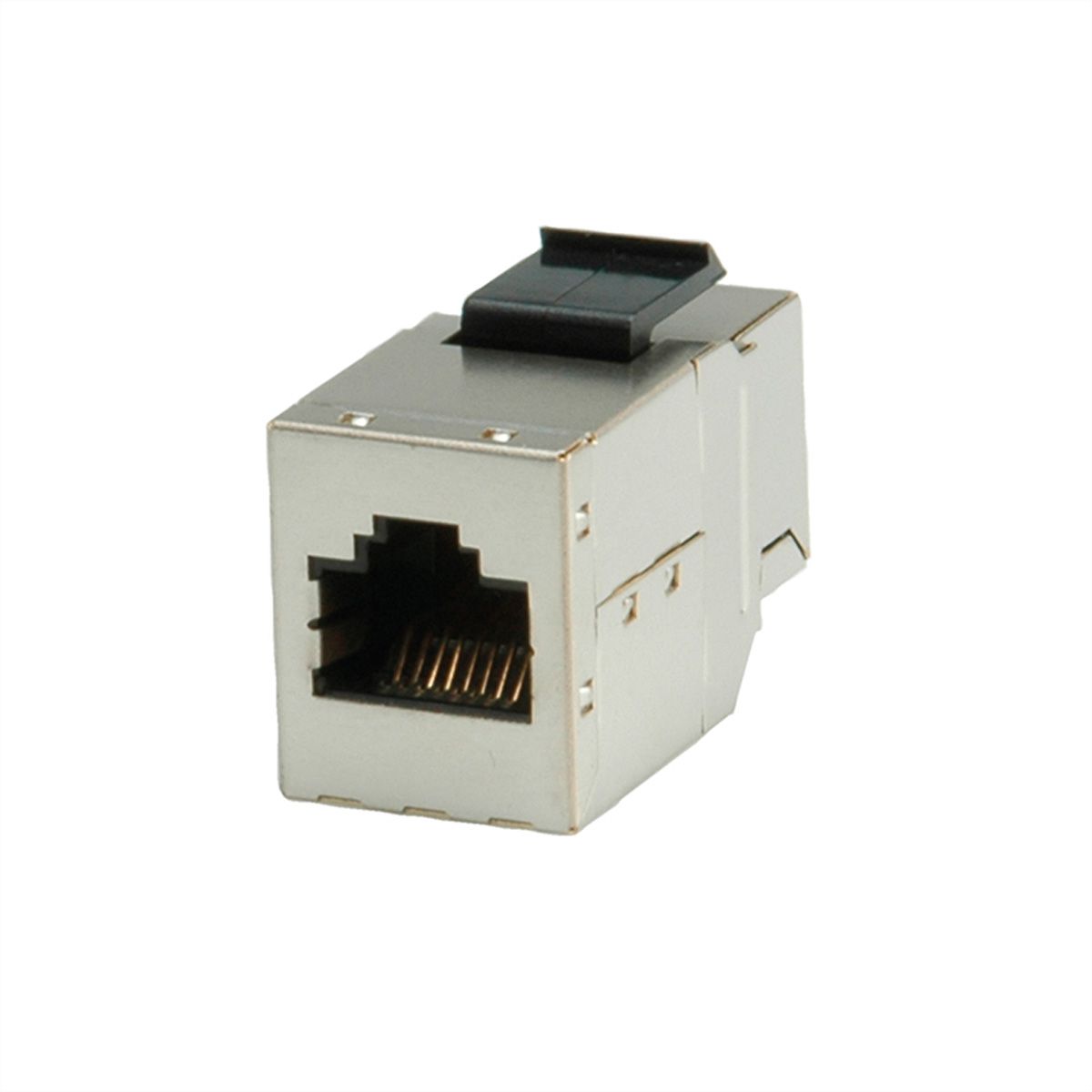

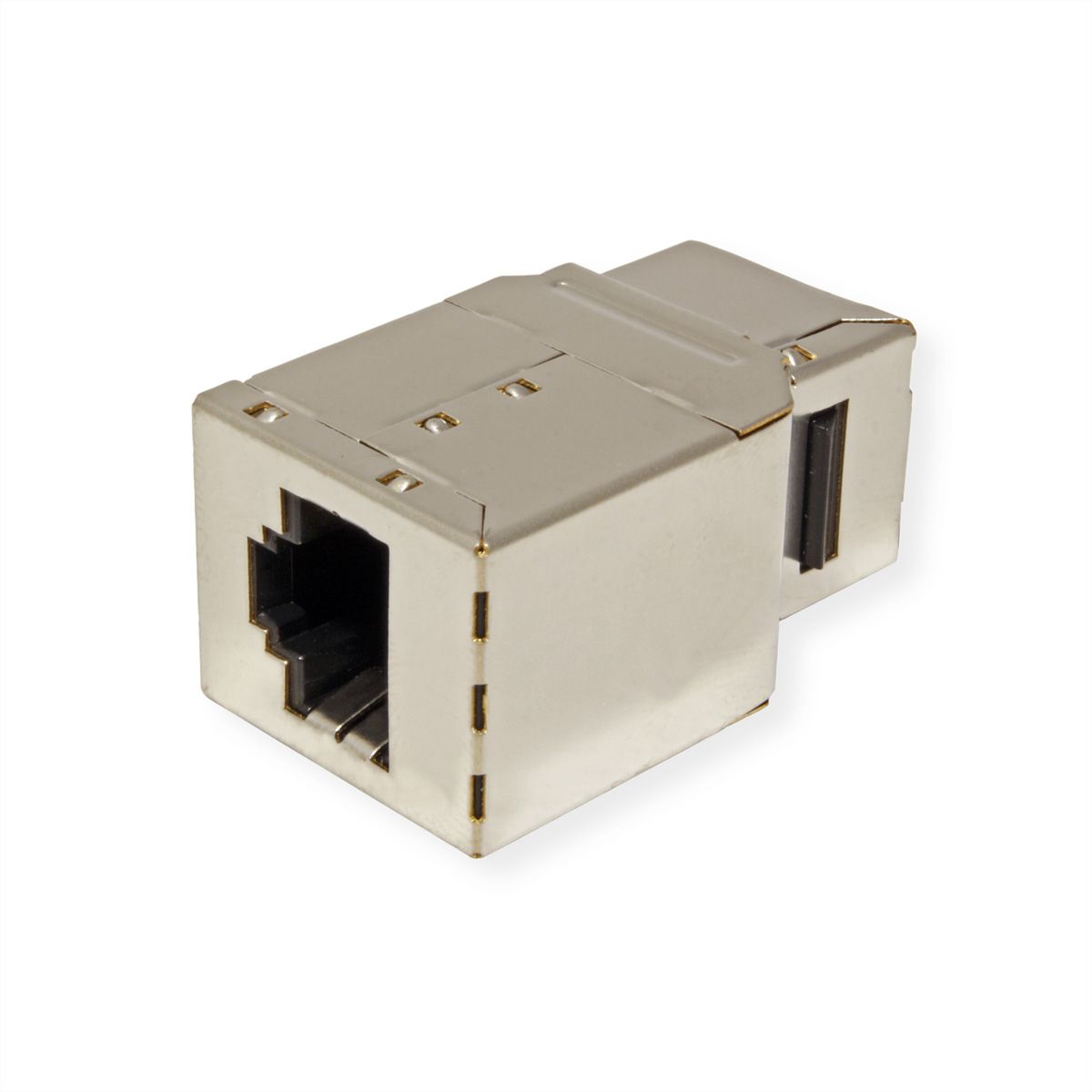

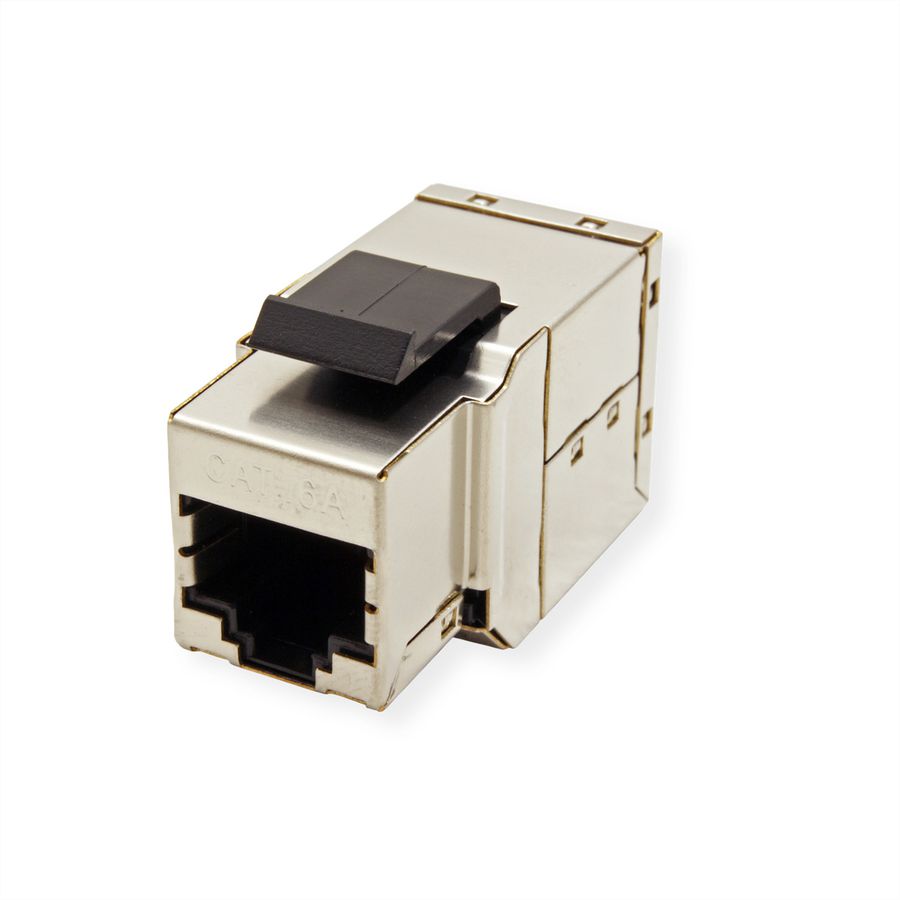

• The shielded RJ-45 couplers are able to extend Twisted Pair Cat.6a cables
• Best transmission characteristics for pair combination 1/2 and 3/6 (as used by all Ethernet versions)
• Whole Housing of metal to safe the signals against electrical and magnetical interferences
• 8 contacts, 1:1 connected

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ-45 coupling
Colour	silver
Shield type	Screened
Transfer quality	Cat6A / Class EA
Quantity of ports	2 x RJ-45
Assignment	EIA/TIA 568A
Material (casing)	metal
Shield contacts	yes
separate strain relief	no
Connection direction	Straight
Technical particularity	1 : 1 connected
Height	25 mm
Width	17.4 mm
Depth	36 mm
Weight	13.2 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	120 mm
Package weight (single piece)	0.01 kg

Downloads

Product data sheet - English (39.1 KB)

Download

Manufacturer data sheet - English (873.7 KB)

Download
