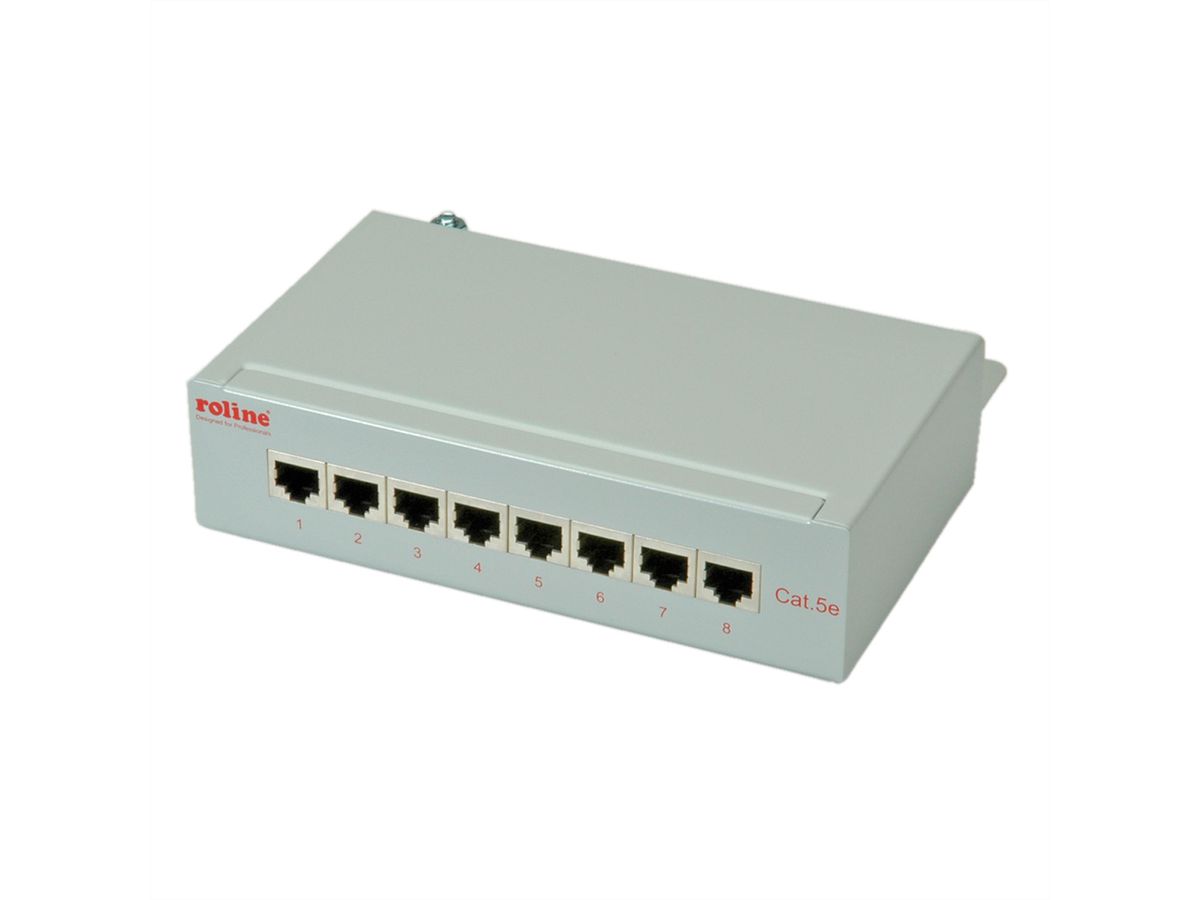

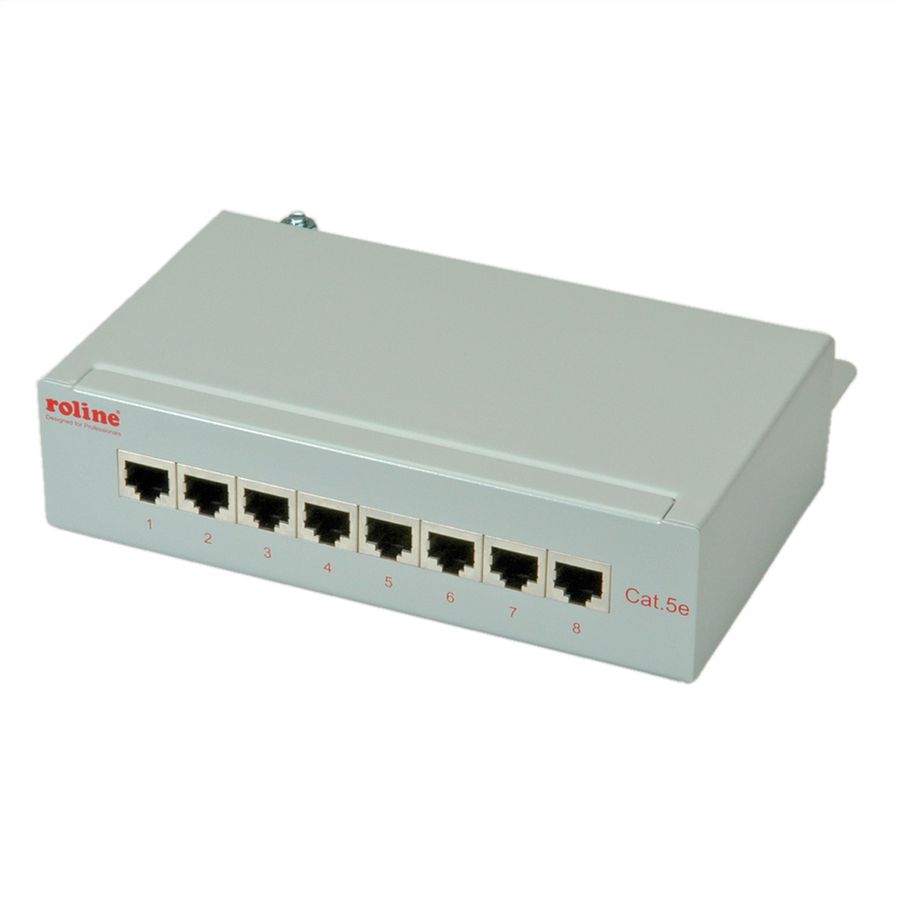

Description

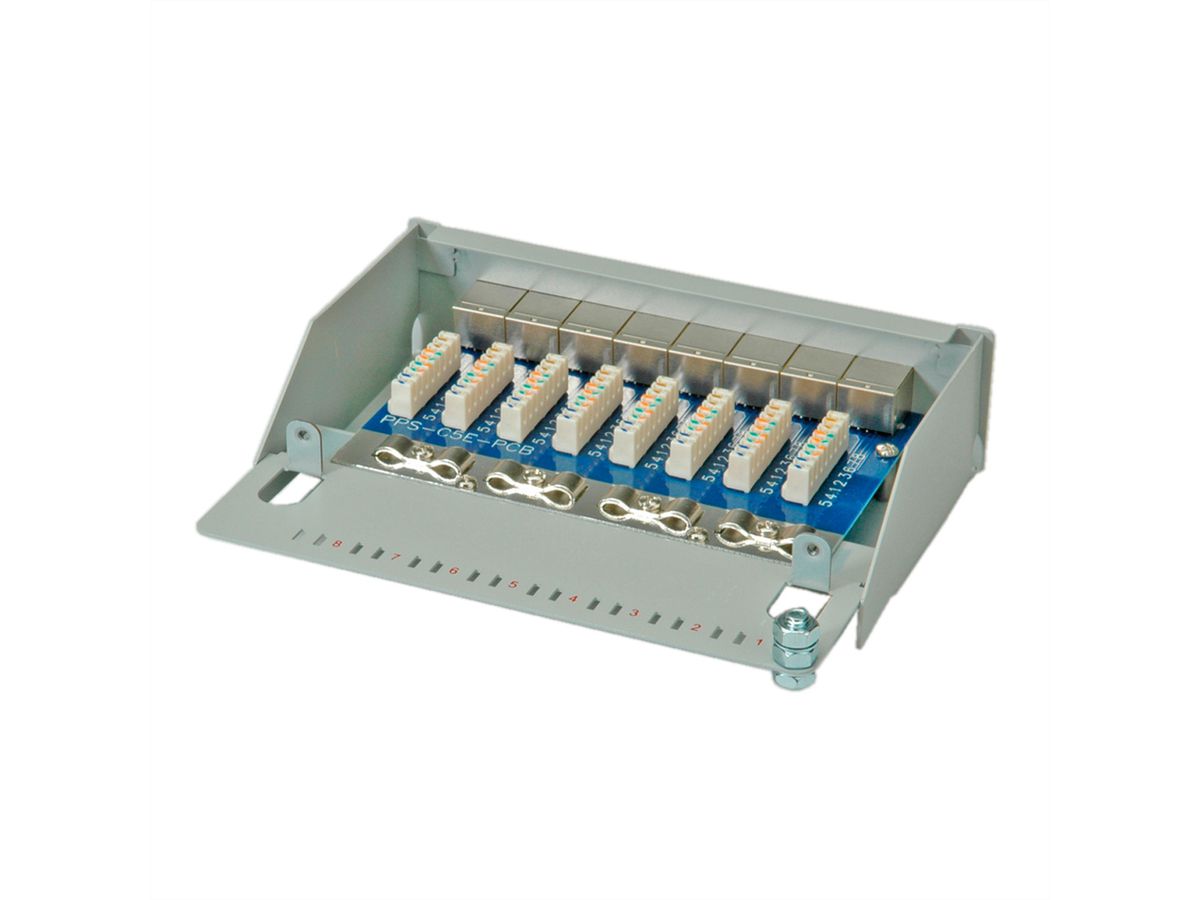

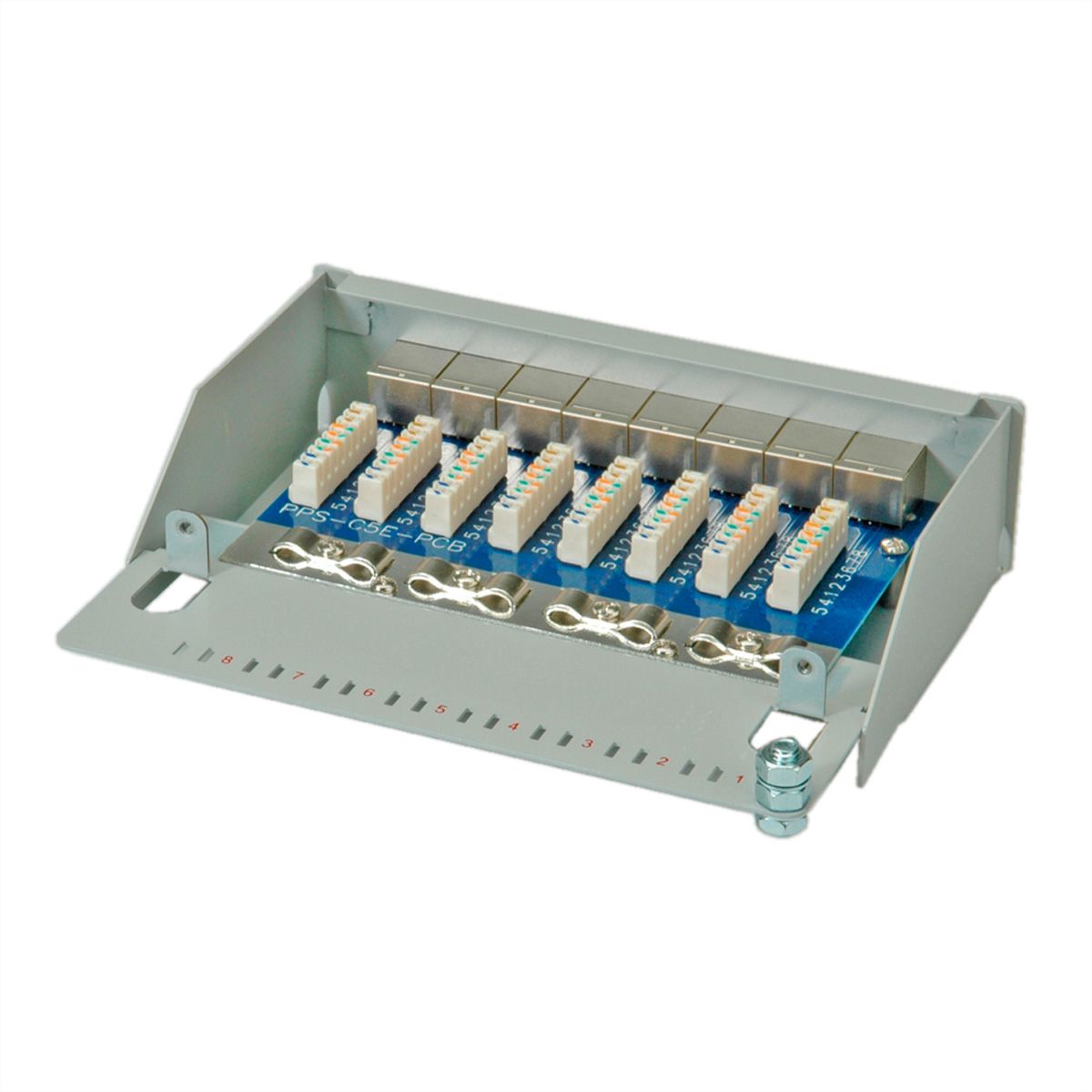

• The ROLINE connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips.
• The cable connection takes place using LSA plus cable clamps marked with the appropiate colour coding EIA / TIA 568A specifications. The screen connection and strain relief takes place using metallic cable clips
• Housing and dust cover: metal
• Colour: lightgrey

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	Patchpanel Cat.5e
Colour	grey
Shield type	Screened
Transfer quality	Cat5e / Class D
Quantity of ports	8
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Modular assembly	no
Shield contacts	Yes

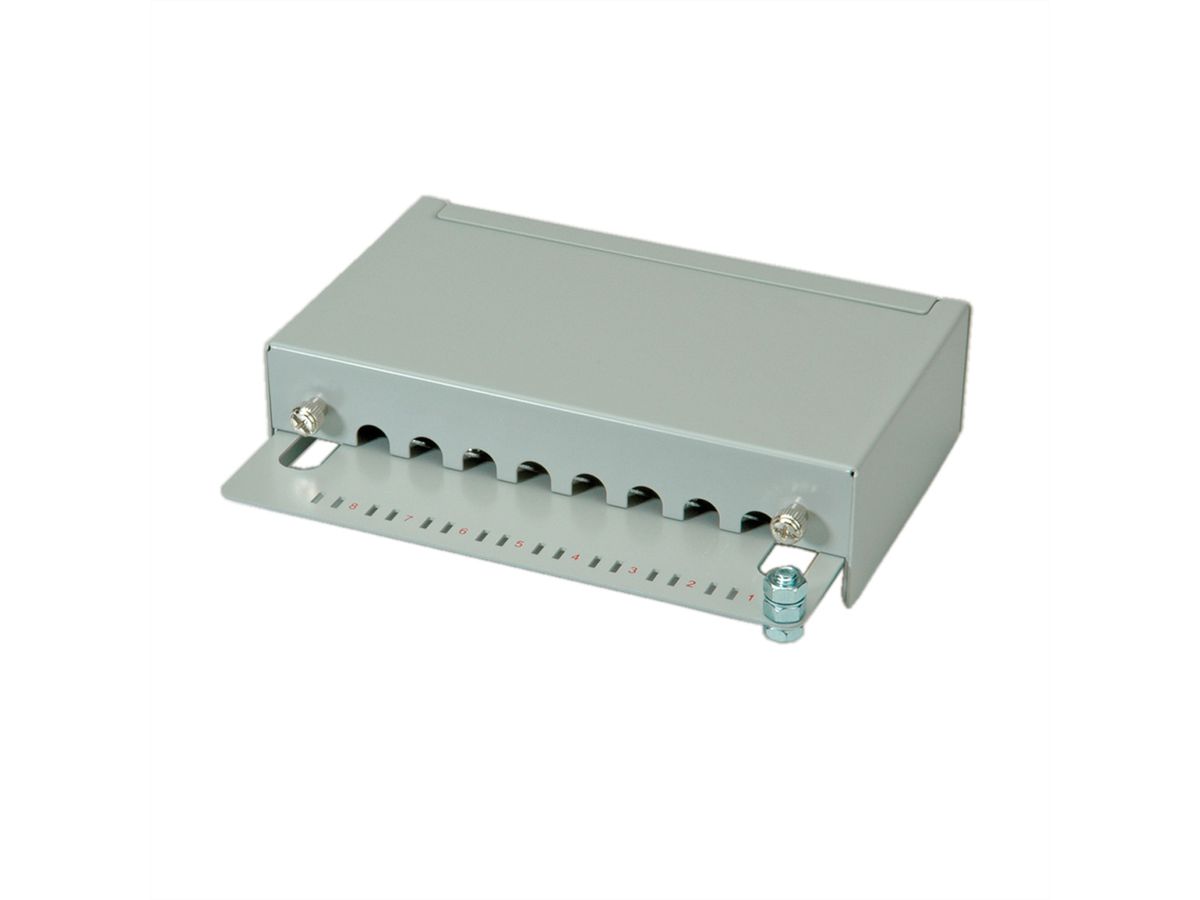

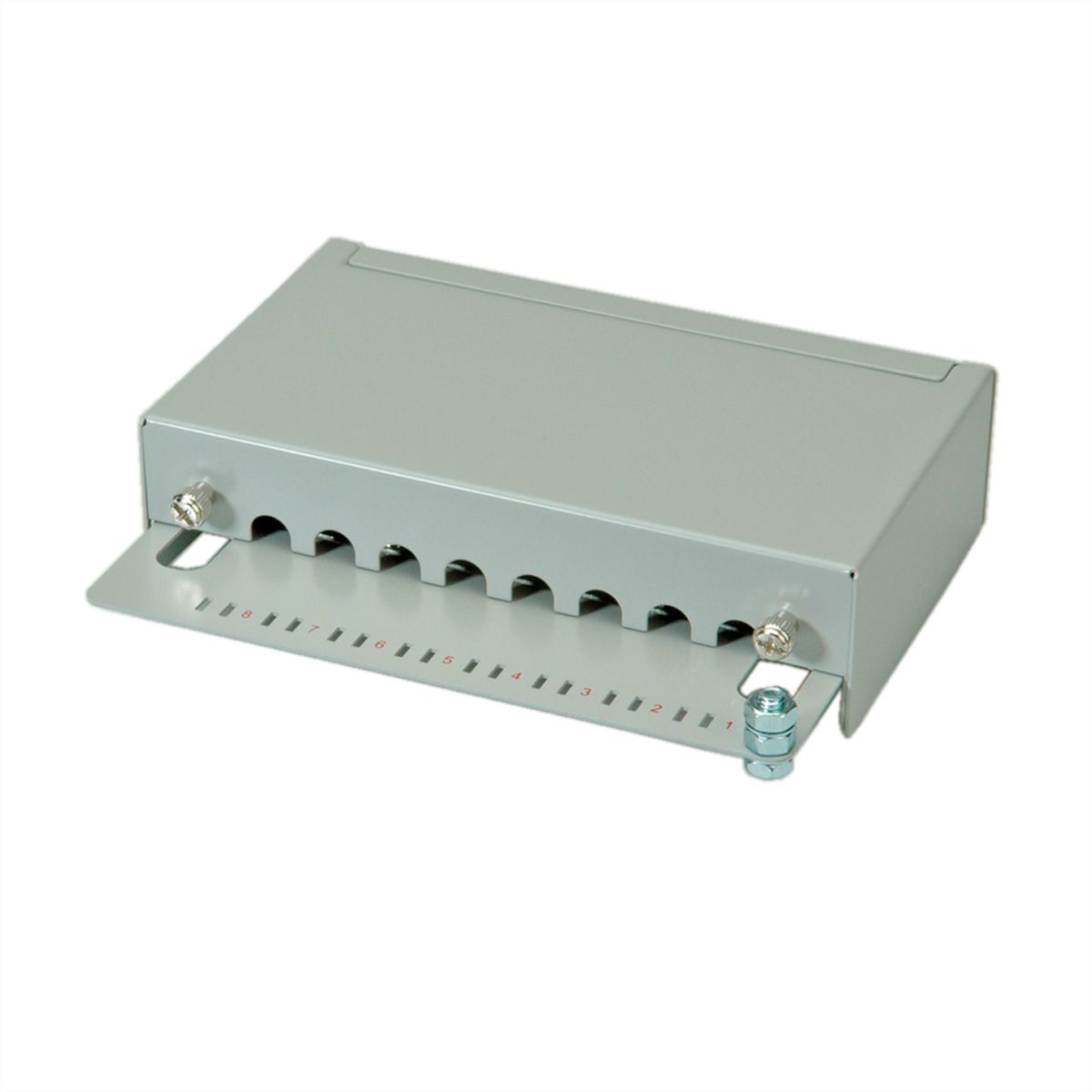

separate strain relief	yes
Connection direction	Straight
Dimensions (HxWxD)	44 x 172 x 140 mm
Assembly depth	140 mm
Height units	1 U
Technical particularity	Wall mount
Height	44 mm
Width	172 mm
Depth	140 mm
Weight	621.9 g
Height of packaging (single piece)	50 mm
Width of packaging (single piece)	140 mm
Depth of packaging (single piece)	290 mm
Package weight (single piece)	0.725 kg

Downloads

Product data sheet - English (41.9 KB)

Download

Manufacturer data sheet - English (680.9 KB)

Download
