The products of our own brand ROLINE are designed for professional continuous operation.
With a 2-year functional guarantee, we stand by our performance promise.
ROLINE – Quality makes the difference.
:strip_icc():strip_exif()/bilder/s21/21173001_102.jpg "ROLINE Cat.5e (Class D) Modular Coupler, UTP, white")

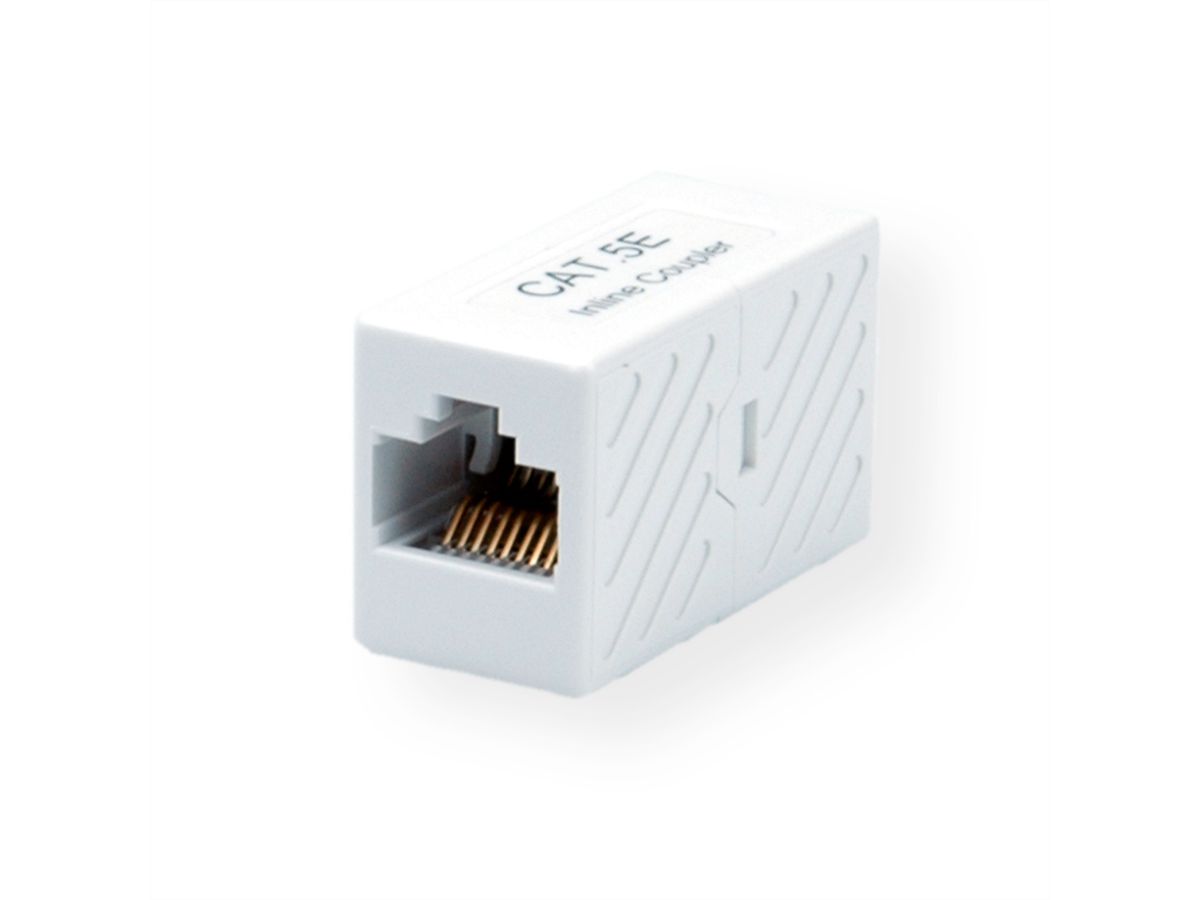

ROLINE Cat.5e (Class D) Modular Coupler, UTP, white
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 21.17.3001-20 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 21.17.3001 |
| EAN | 7611990987962 |
| Package weight | 0.02 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
- unshielded with plastic housing
- The couplers are able to extend Cat. 5e cables
- Best transmission characteristics for pair combination 1/2 and 3/6 (as used by all Ethernet versions)
- 8 contacts, 1:1 connected
- Colour: white
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ-45 Implementing clutch |
| Colour | white |
| Shield type | UTP |
| Transfer quality | Cat5e / Class D |
| Quantity of ports | 2 x RJ-45 |
| Assignment | EIA/TIA 568A |
| separate strain relief | no |
| Connection direction | Straight |
| Technical particularity | 1 : 1 connected |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Height | 21 mm |
| Width | 16.3 mm |
| Depth | 35 mm |
| Weight | 7.8 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 70 mm |
| Depth of packaging (single piece) | 110 mm |
| Package weight (single piece) | 0.02 kg |
