Description

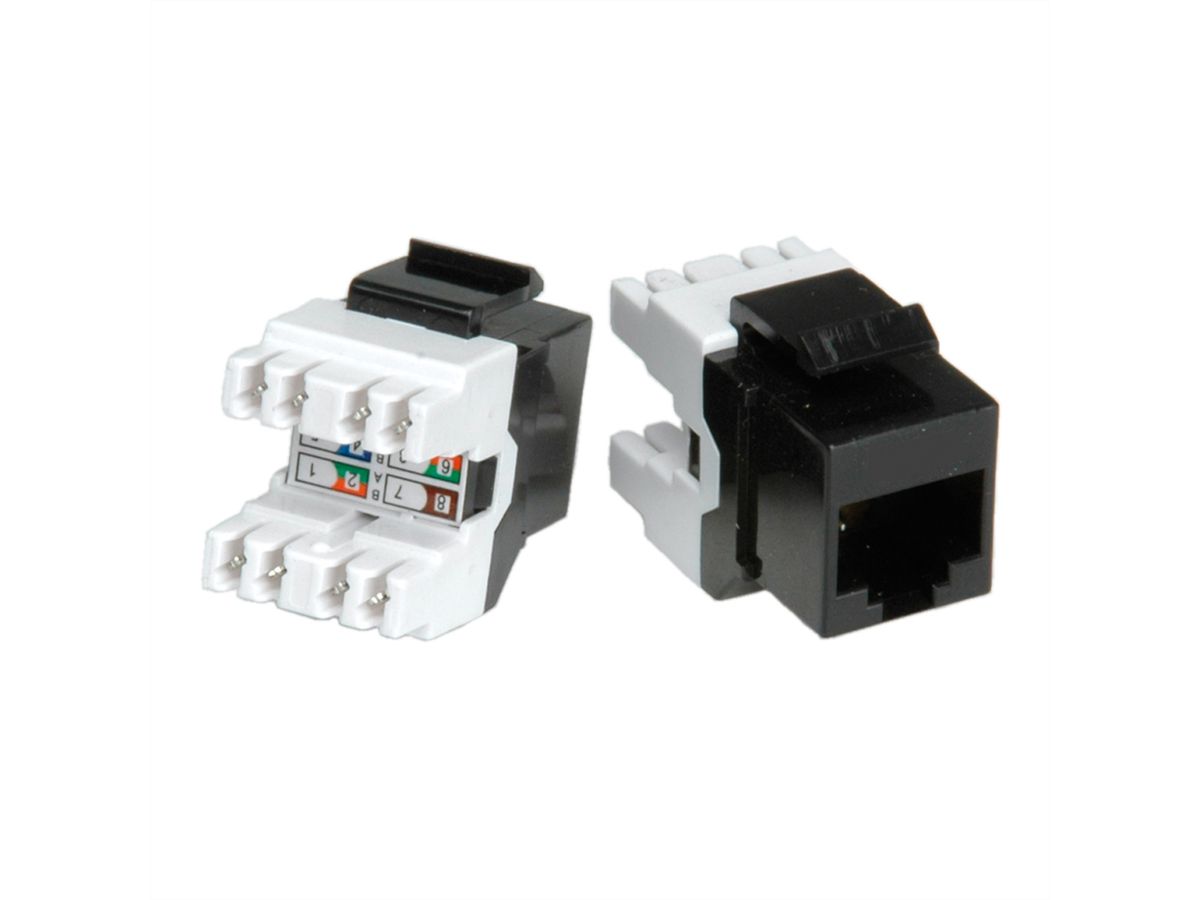

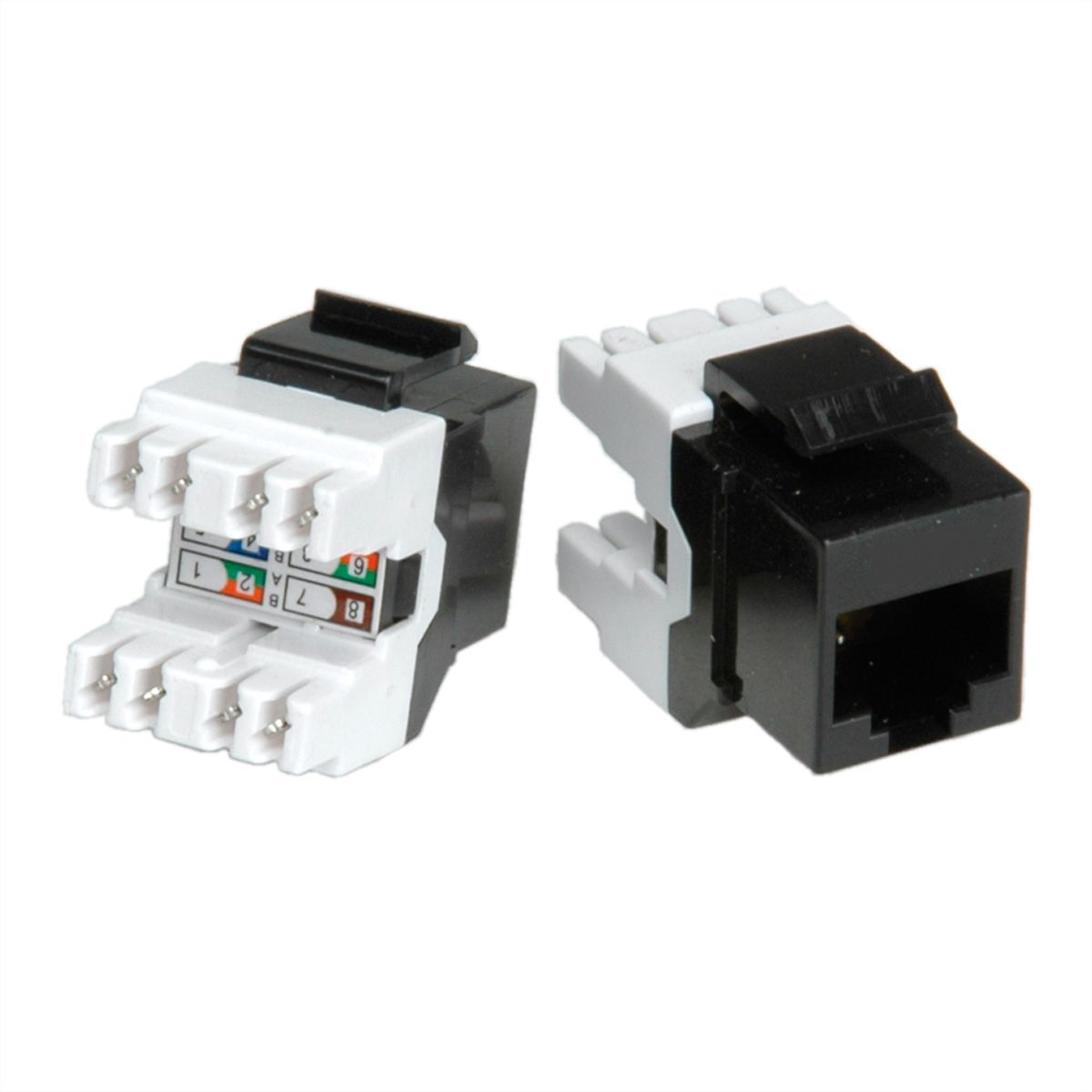

• The system is composed of a 19" patch panel frame and the UTP Cat.5e RJ-45 keystone jack
• Assembling takes place over LSA-plus
• Colour code on the keystone jacks based on the standard EIA/TIA 568 A and 568 B
• Colour: Black
• For a structured unshielded Cat.5e cabling system we recommend to use the following components:

ROLINE Cat.5e UTP Cable, Solid Wire, AWG24: 21.15.0512 (100 m), 21.15.0511 (300 m)
ROLINE Flush Mount Wall Jack for Keystones, unloaded: 25.16.8579
ROLINE Cat.5e Keystone, RJ-45, unshielded: 26.11.0343 (light grey), 26.11.0342 (black)
ROLINE Cat.5e UTP Patch Cord, grey, 5 m: 21.15.0505
Our in-house laboratory has tested this cable-plug combination, in a Channel of 100 meters, in compliance with Class D specification.

Specifications

Manufacturer	ROLINE
Product group	Connection technology TP
Product type	RJ45 Keystone Jack
Colour	black
Shield type	Not screened
Transfer quality	Cat5e / Class D
Cabinet system	19"-Technique
Quantity of ports	1
Assembly cable connection	Krone LSAplus
Assignment	EIA/TIA 568A & 568B
Modular assembly	yes
Connection direction	Straight
Height	23 mm
Width	16.3 mm
Depth	31 mm
Weight	7.9 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	30 mm
Depth of packaging (single piece)	30 mm
Package weight (single piece)	0.008 kg

Downloads

Product data sheet - English (31.0 KB)

Download

Manufacturer data sheet - English (599.0 KB)

Download
