Description

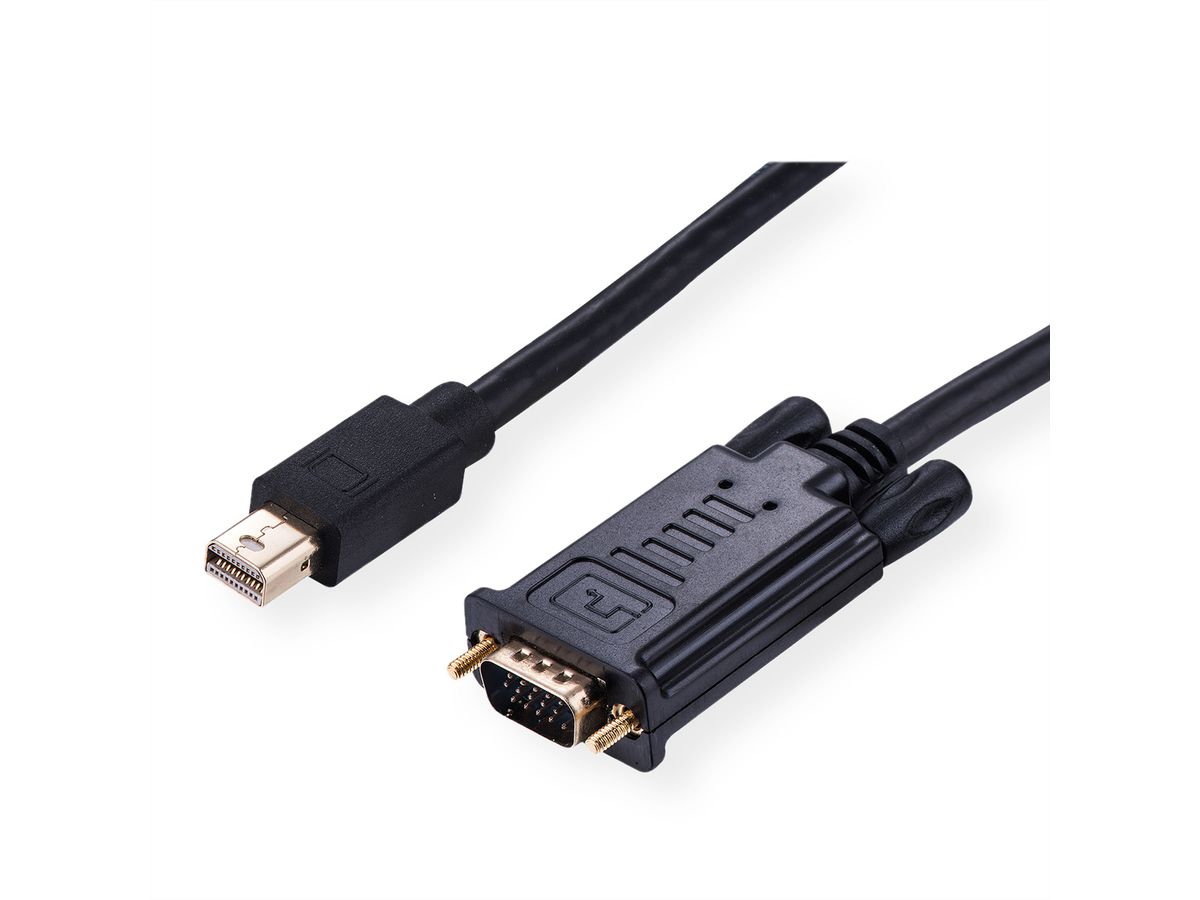

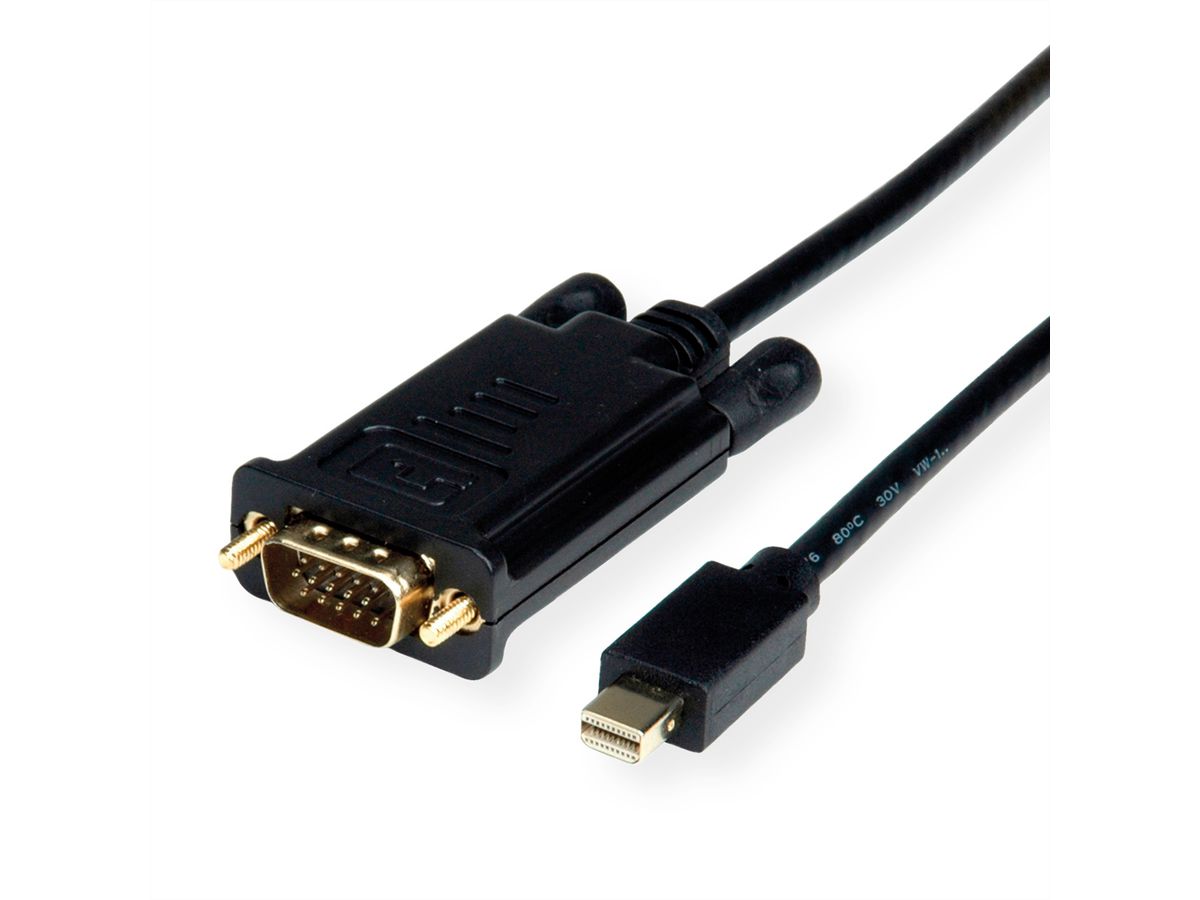

Mini DisplayPort to VGA cable for connecting a graphics card with MiniDP to a monitor with VGA connector - with a resolution of up to 1920x1080@60Hz!

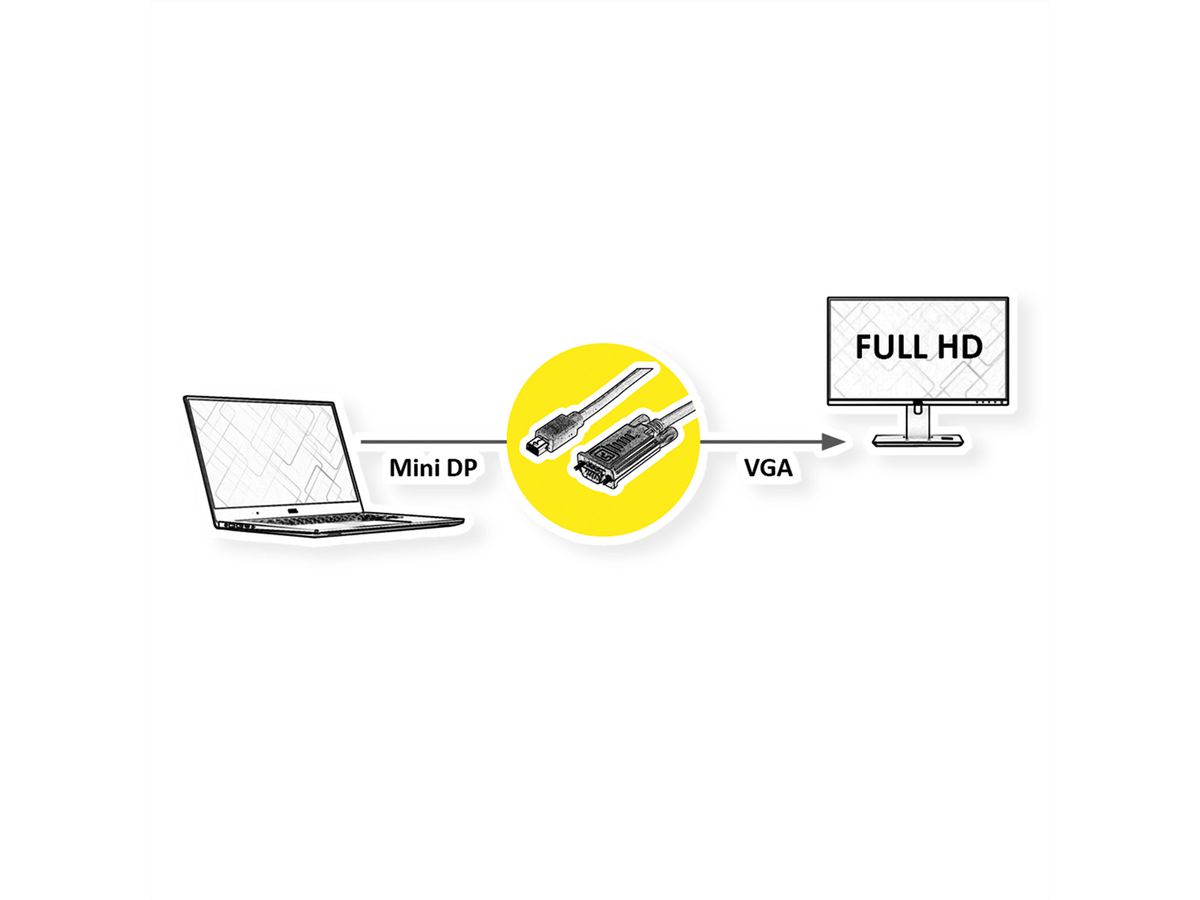

• For connecting a graphic card with Mini DisplayPort connector to a VGA monitor
• Supports maximum resolutions of up to 1920x1080 @60Hz
• The lock mechanisms of VGA prevent the plugs from slipping out of the source/display and secure the connection
• Connectors: Mini DisplayPort Male and VGA Male

• Remark: The Mini DisplayPort-VGA cable is only working in one direction: the Mini DisplayPort plug has to be connected to the source device (e.g. graphic card)

Specifications

Manufacturer	ROLINE
Product group	Video Cable
Product type	Mini DisplayPort-VGA Adapter
Colour	black
Length	5 m
Max. resolution	1920 x 1080 / 1920 x 1200 @60Hz (2K, Full HD)
Side 1 Connector Type	Mini DisplayPort
Side 1 Connector Gender	Male
Side 2 Connector Type	HD D-Sub 15-pin (HD-15), VGA
Side 2 Connector Gender	Male
Area of application	External
Hand locking screws	yes
Weight	202.6 g
Height of packaging (single piece)	20 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	100 mm
Package weight (single piece)	0.215 kg

Downloads

Product data sheet - English (50.6 KB)

Download

Manufacturer data sheet - English (134.9 KB)

Download
