Description

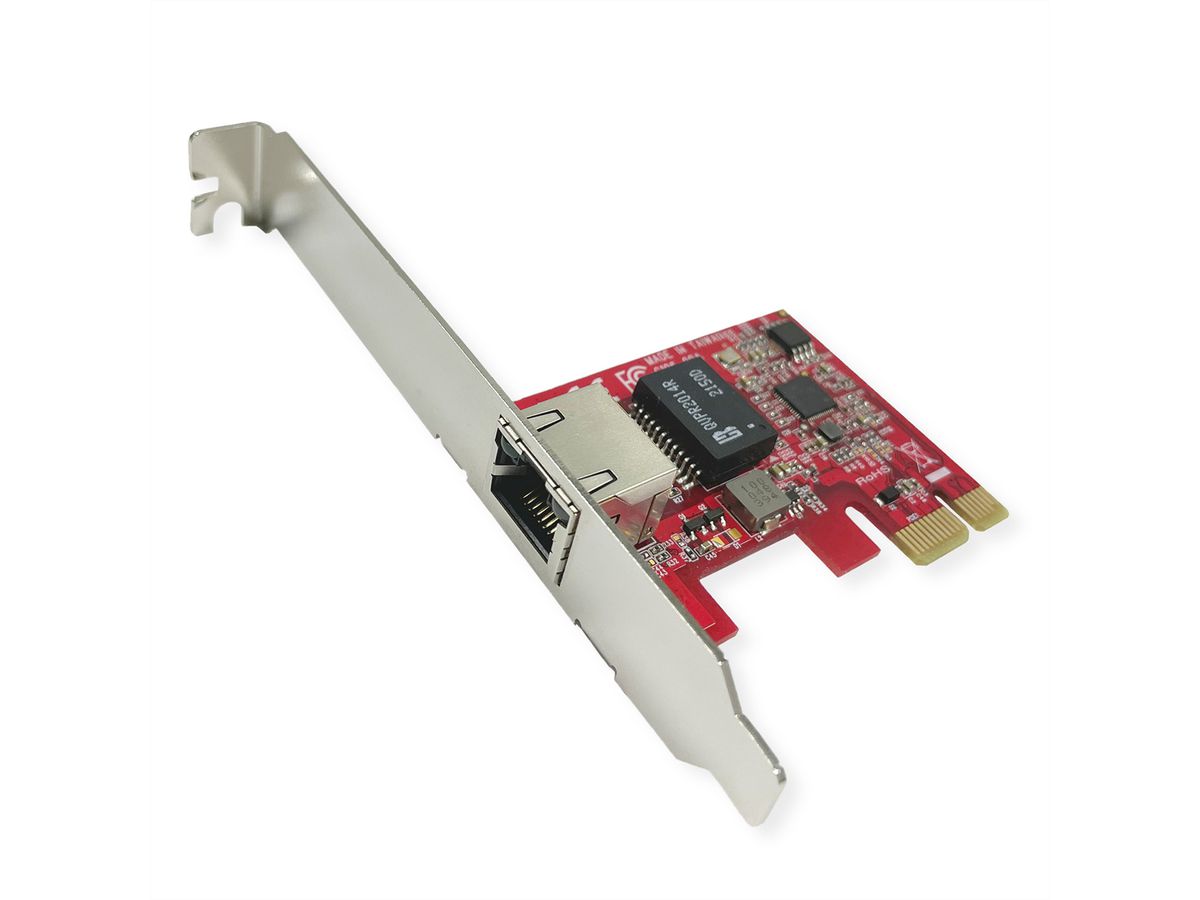

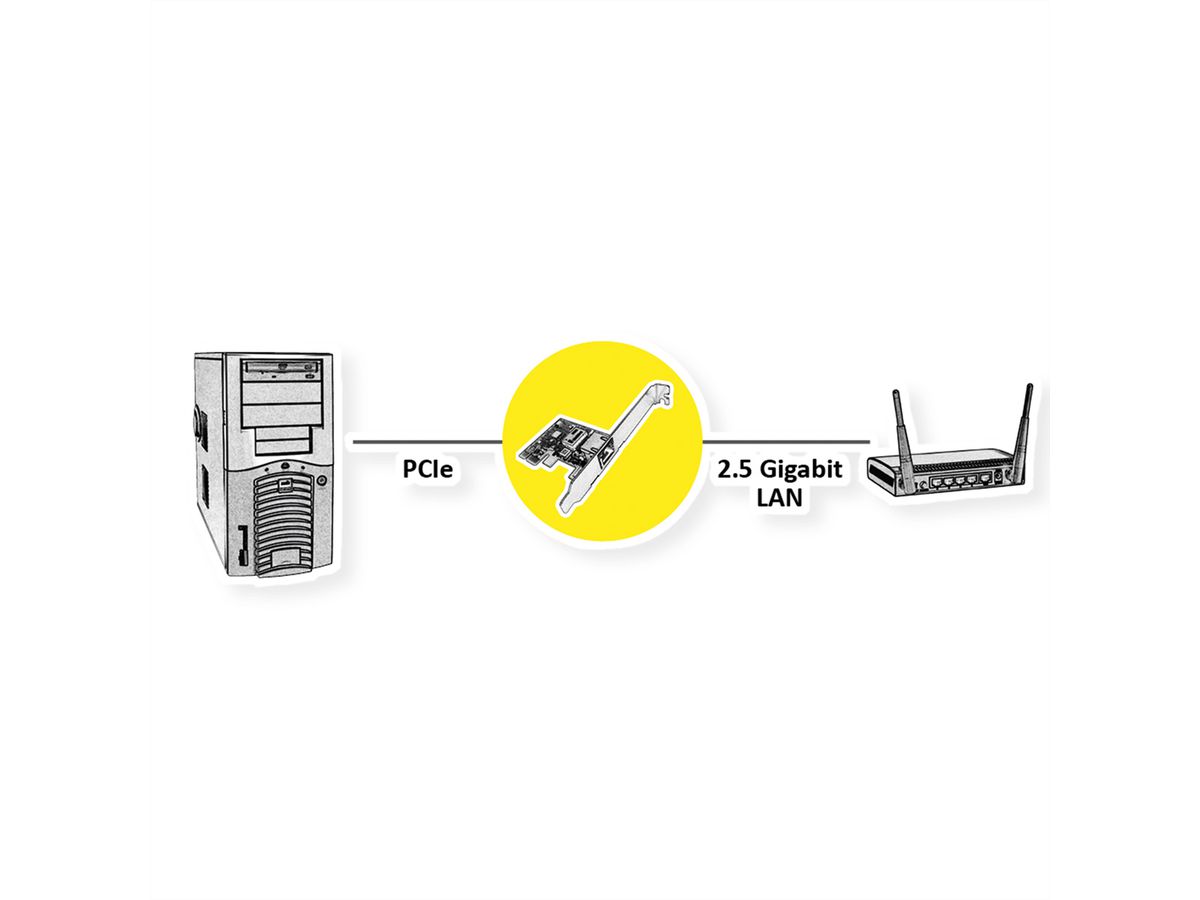

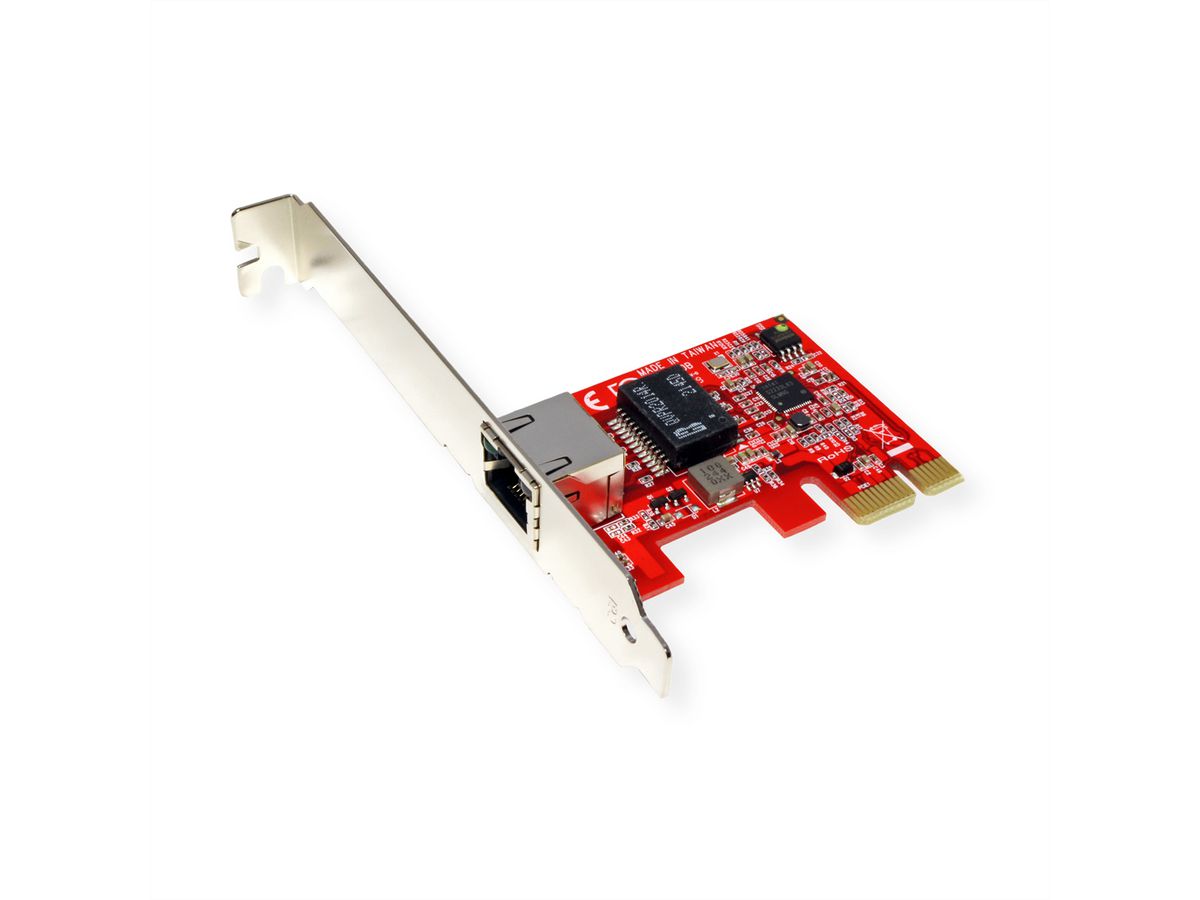

Expand your PC with a connection option to a 2.5 Gigabit Ethernet network!

• Fully compliant with 10BASE-Te, 100BASE-TX, 1000BASE-T and 2500BASE-T 802.3 specifications
• Compliant with PCI Express Gen 2 version 3.1
• 2.5G Ethernet Controller
• Low Profile PCI Form Factor

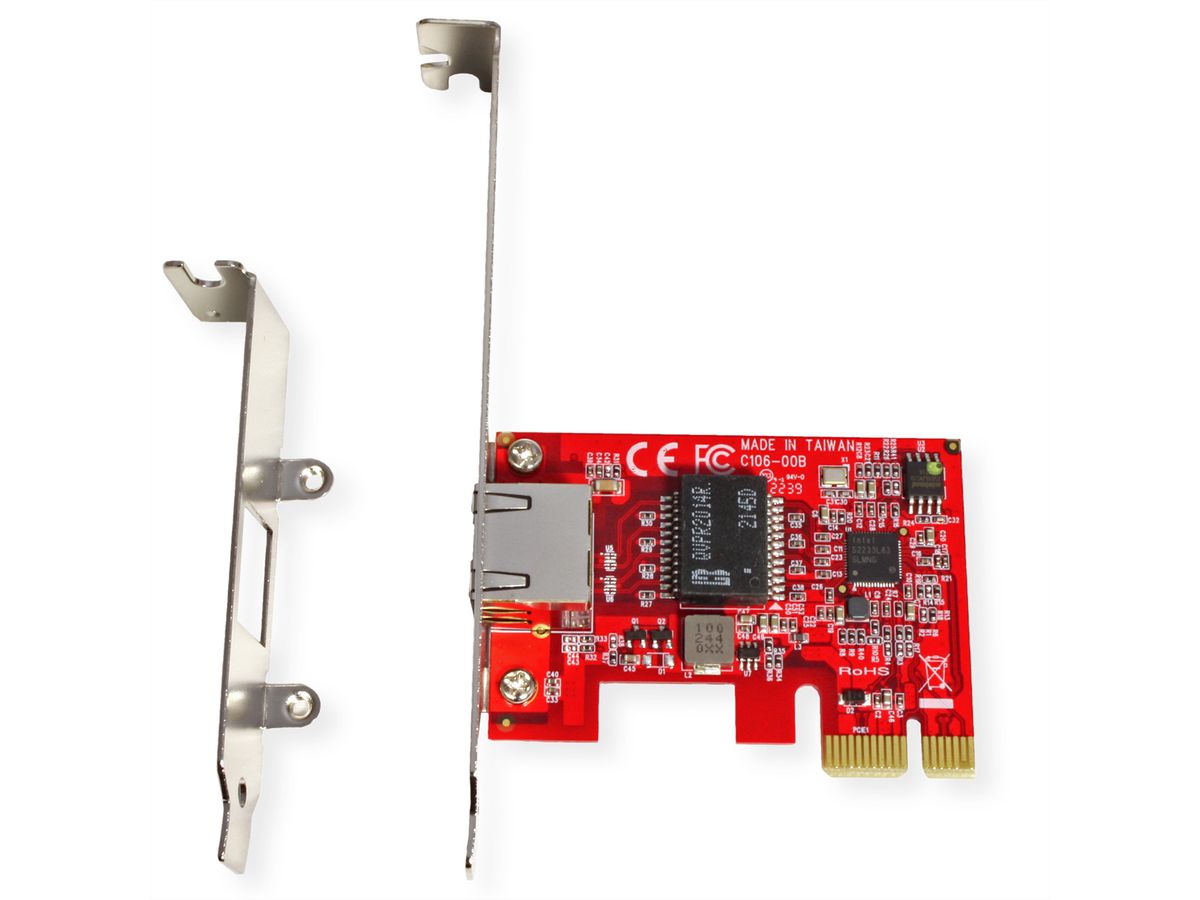

• Regular size PCIe bracket on board and an additional Low Profile bracket included
• RJ-45 Port offers high speed transmission over CAT 5 UTP cable
• 2 LEDs indicate various network activities (2500 and LNK/ACT)
• IEEE 802.3u auto-negotiation
• Carrier extension support (half duplex)
• Half duplex operation at 10BASE-Te and 100BASE-TX
• Automatic polarity correction
• Network proxy/ARP offload
• PXE Support
• Error Correcting Memory (ECC) in packet buffers
• UDP and TCP Transmit Segmentation Offload (TSO)
• SCTP receive and transmit integrity offload
• Queues: 4 Tx and 4 Rx queues
• Jumbo Frame sizes 9K bytes
• Supports Wake-on-LAN

Specifications

Manufacturer	ROLINE
Product group	I/O Card
Product type	PCI-Express Adapter
Colour	multicolored
Scope of delivery	Adapter, low profile bracket, manual
BUS system	PCI Express
Operating System	Windows 10 / 8.1/ 8 / 7 / 10
Mounting height	Full profile
Installation Guide / Manual	yes
Weight	43.2 g
Height of packaging (single piece)	40 mm
Width of packaging (single piece)	150 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.18 kg

Downloads

Product data sheet - English (46.9 KB)

Download
