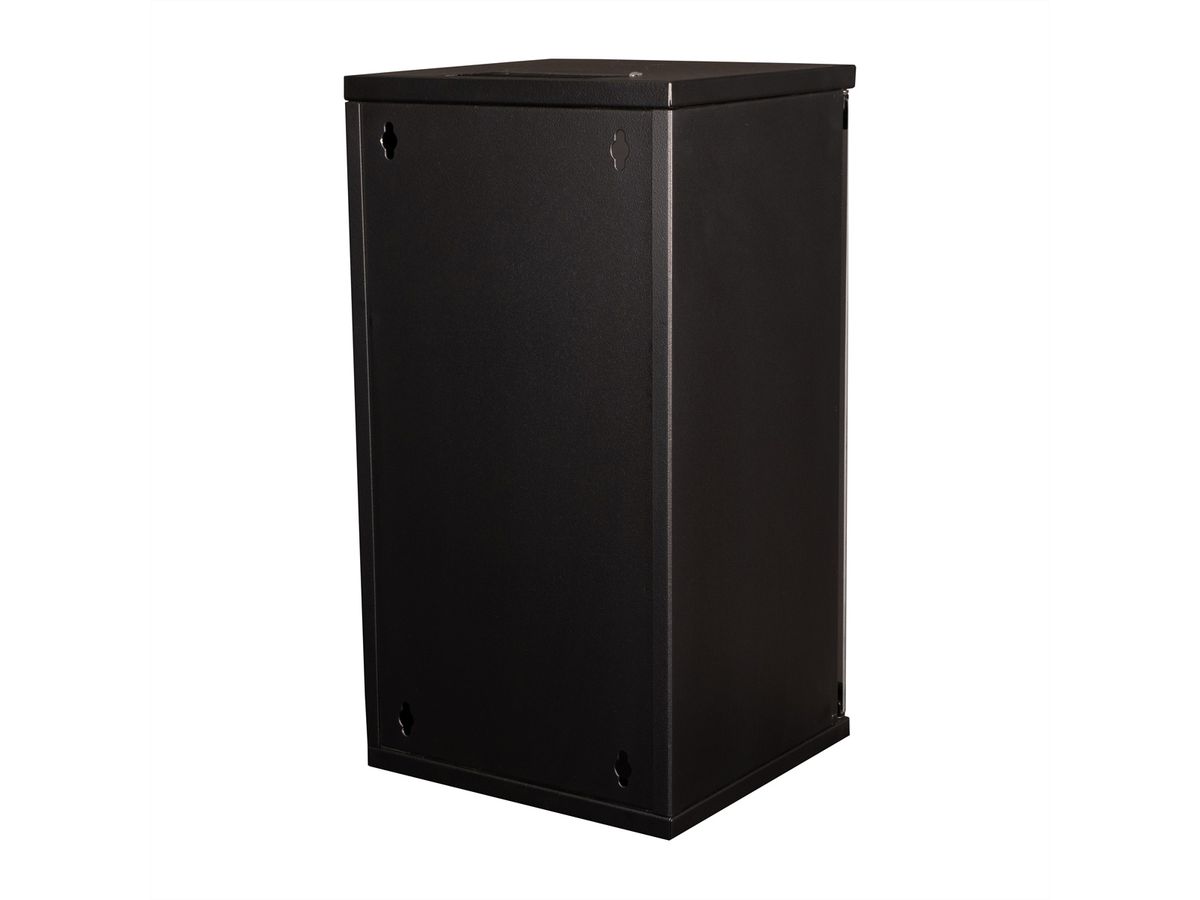

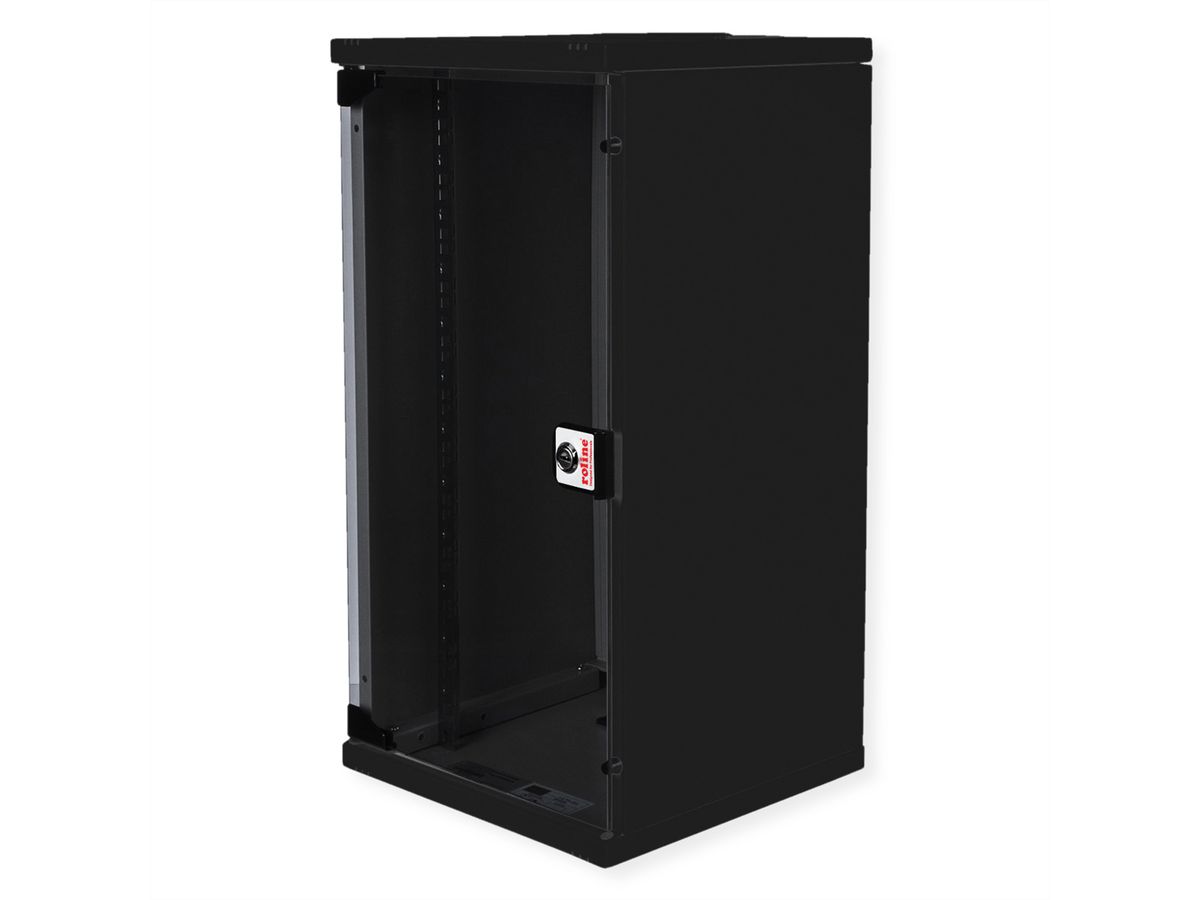

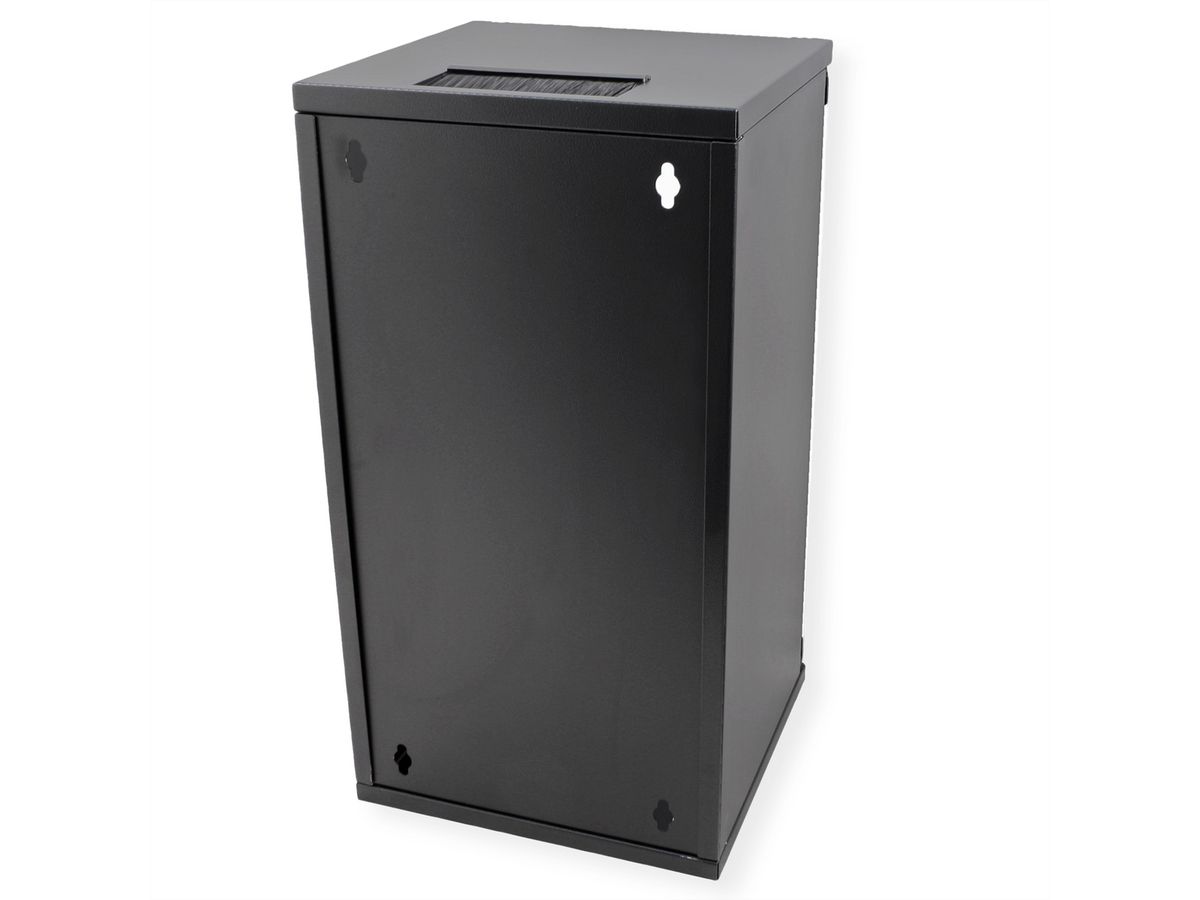

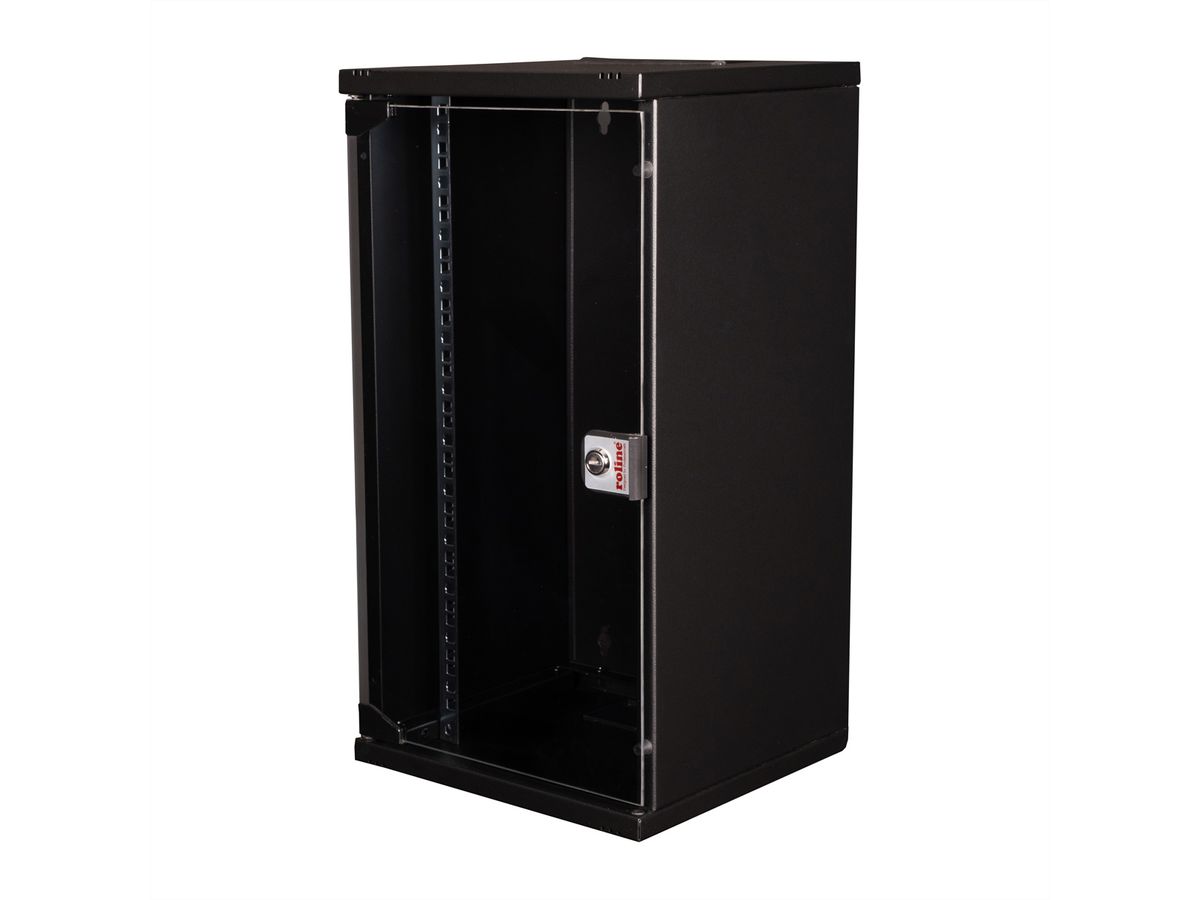

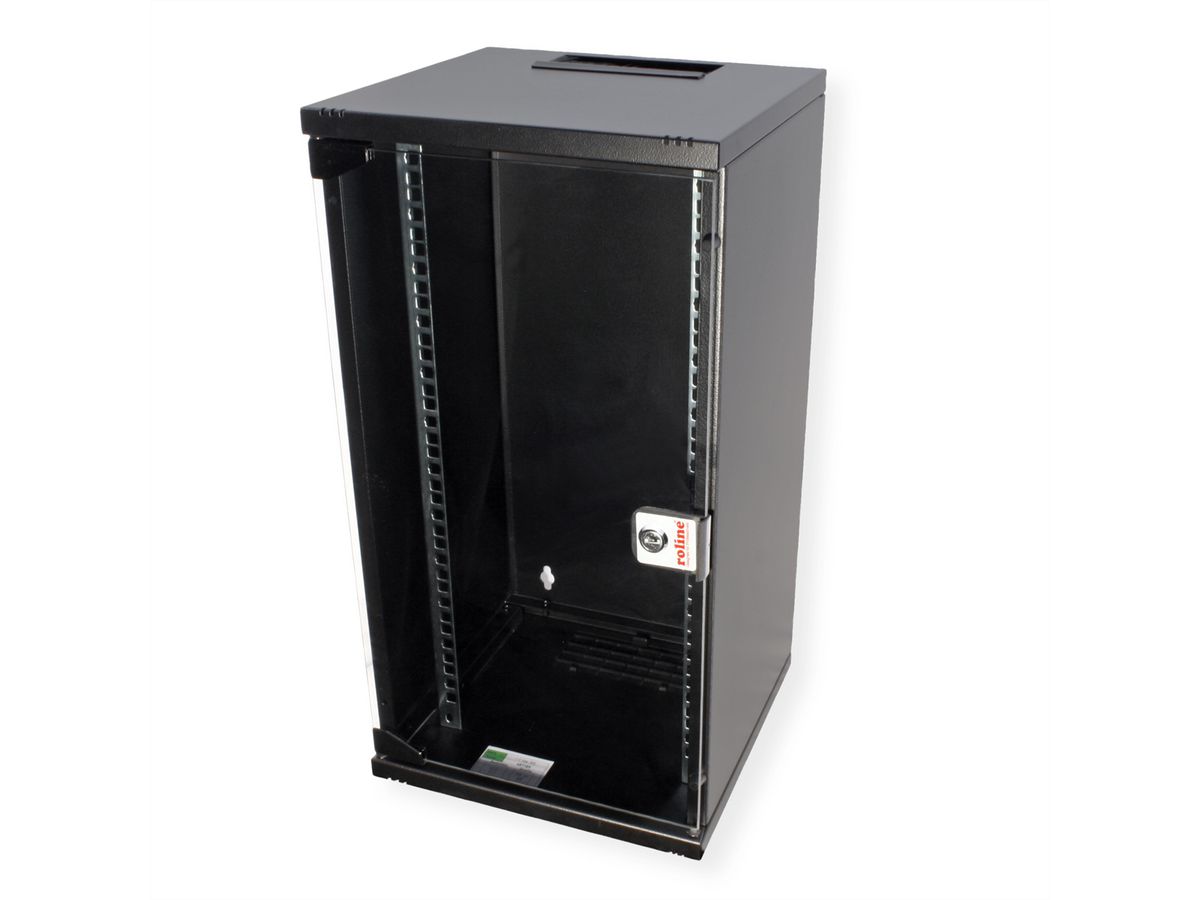

ROLINE 10-inch wall-mounted housing 12 U, 312x300 WxD black
Please log in to be able to use the shopping cart and then complete orders.
Log in| Item no. | 26.21.0195 |
|---|---|
| Brand / Manufacturer | ROLINE |
| Manuf. no. | 26.21.0195 |
| EAN | 7630049601987 |
| Package weight | 9 kg |
:strip_icc():strip_exif()/logos/roline.png "ROLINE")
Description
ROLINE 10 inch wall-mounted enclosure 12 U 312x300 WxD black

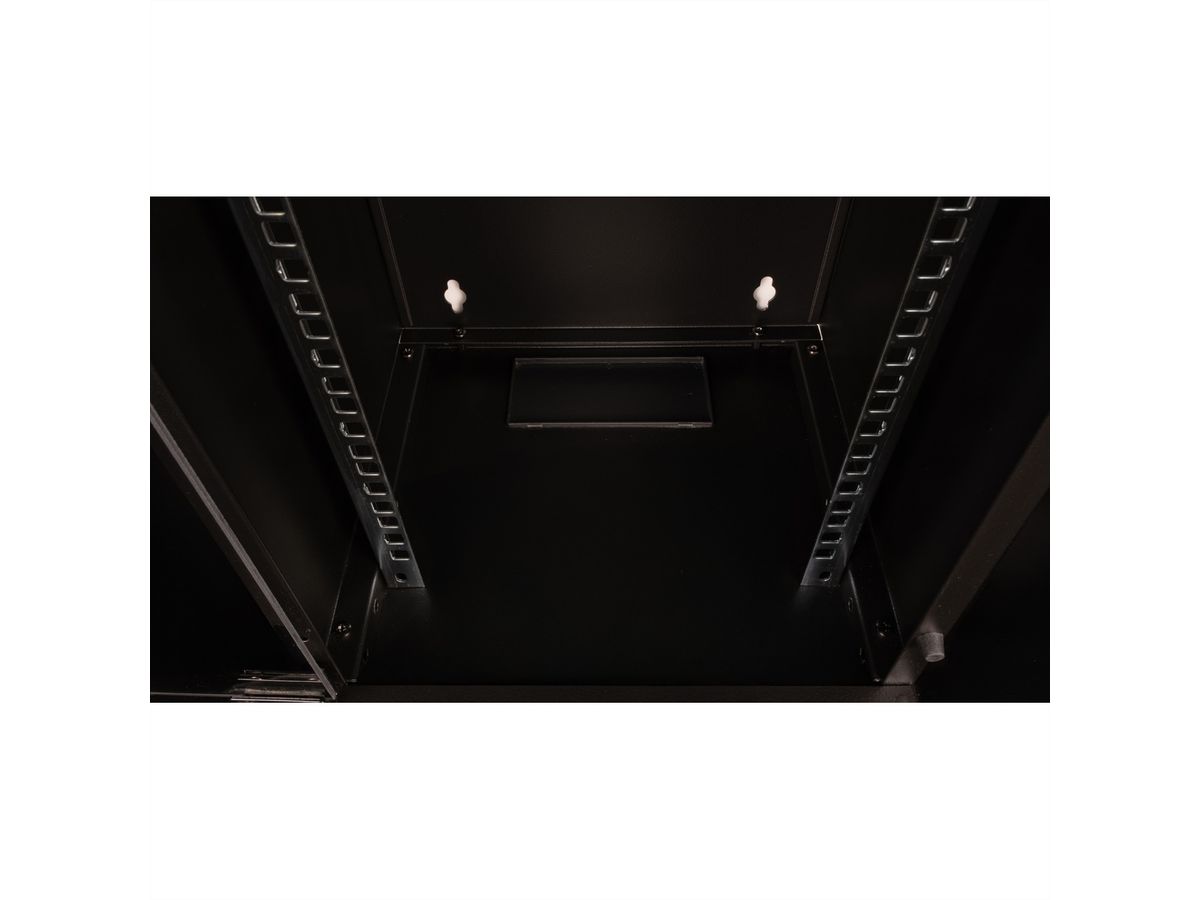

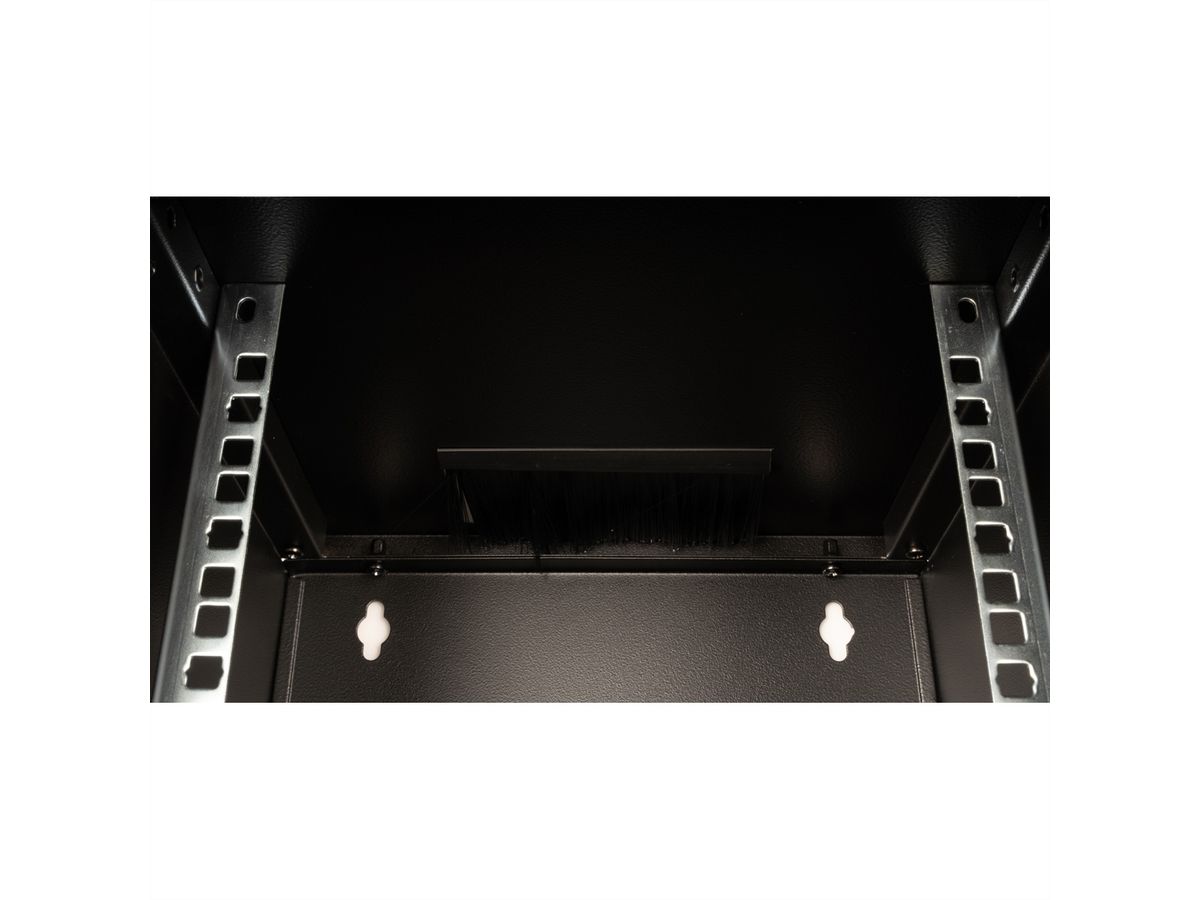

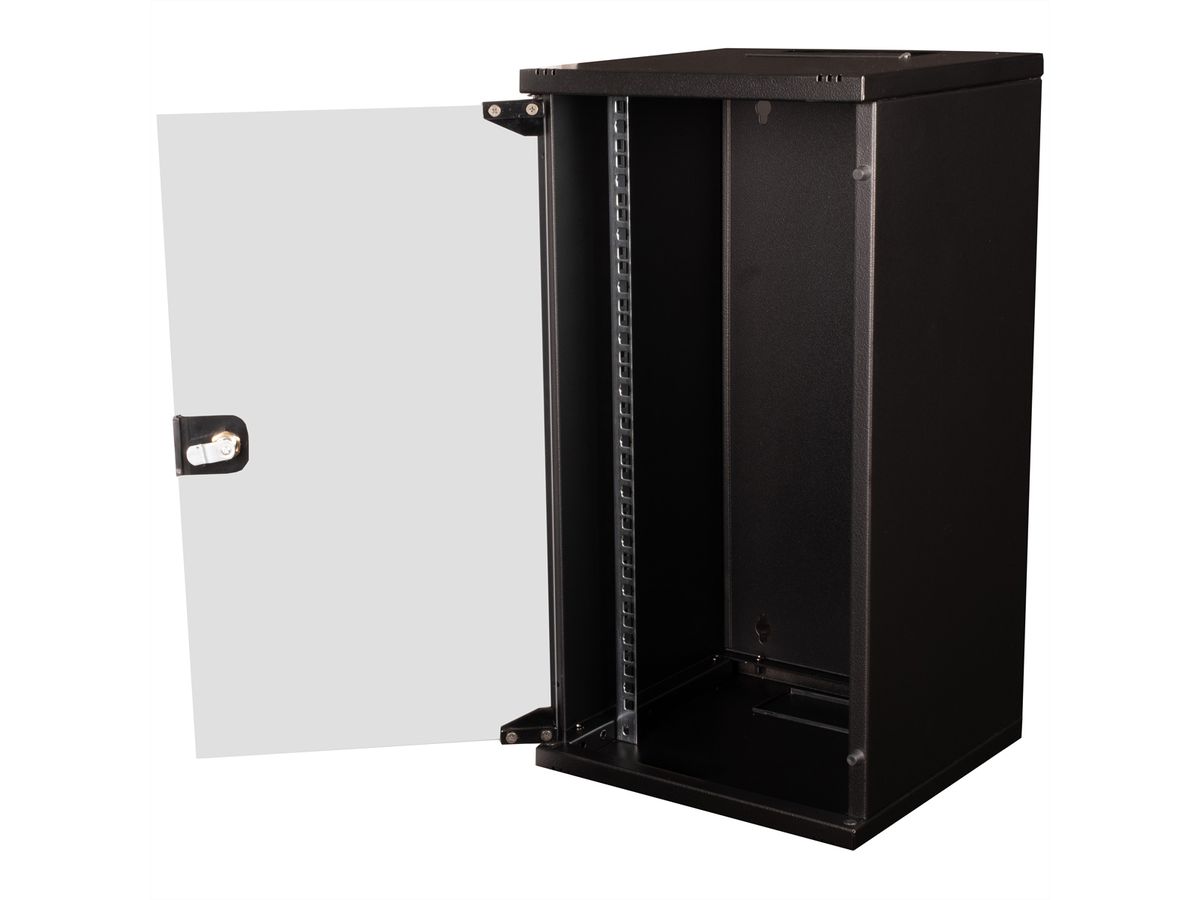

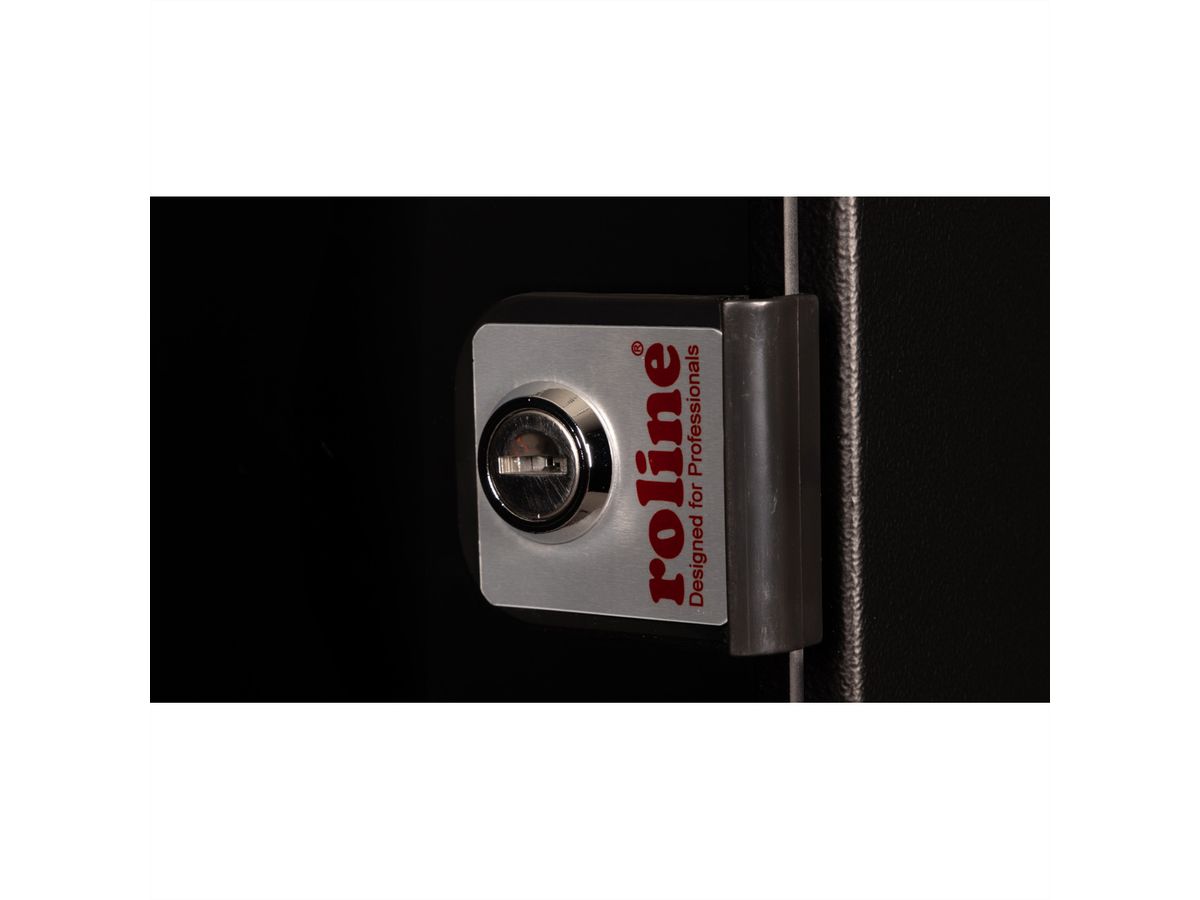

Whether in the home, in the office or in sub-distribution boards with limited space - with the compact 10" solutions, you can install your network wherever you need it. The wall-mounted enclosures, which are available in three different height units (6U, 9U, 12U), have a full glass door and a cable entry with brushes in the roof and base. Inside, a pair of galvanised 10" profile rails with readable height units are installed, which can be adjusted in depth. Each enclosure consists of a robust steel construction made of up to 1.5 mm thick sheet steel and is electrostatically powder-coated in the standard colours grey (RAL 7035) and black (RAL 9005). It is possible to change the door hinge. In addition, the cabinets can be completely dismantled if required thanks to their demountable design.
Specifications
| Manufacturer | ROLINE |
|---|---|
| Product group | 19"- / 10" technology |
| Product type | 10"-wall housing |
| Colour | black |
| Scope of delivery | 10-inch wall-mounted housing 12 U, installation set (screws, cage nuts, washers), 2x spanners, assembly instructions |
| Height units | 12 U |
| Minimum rack depth supported | 170 mm |
| Maximum rack depth supported | 270 mm |
| delivery condition | fully assembled |
| Material group | Steel |
| Wall mountable | yes |
| Adjustable feets | no |
| Protection class (IP Code) | IP20 |
| Soundproof | no |
| Front | Glass door |
| Rack rails | yes |
| Side panels included | yes |
| Removeable side panels | no |
| Removable front door | yes |
| Removable back door | no |
| Ventilation | Passive |
| RAL colour | RAL 9005 Jet black |
| Height | 595 mm |
| Width | 300 mm |
| Depth | 300 mm |
| Weight | 8.2 kg |
| Height of packaging (single piece) | 636 mm |
| Width of packaging (single piece) | 350 mm |
| Depth of packaging (single piece) | 350 mm |
| Package weight (single piece) | 9 kg |
