Description

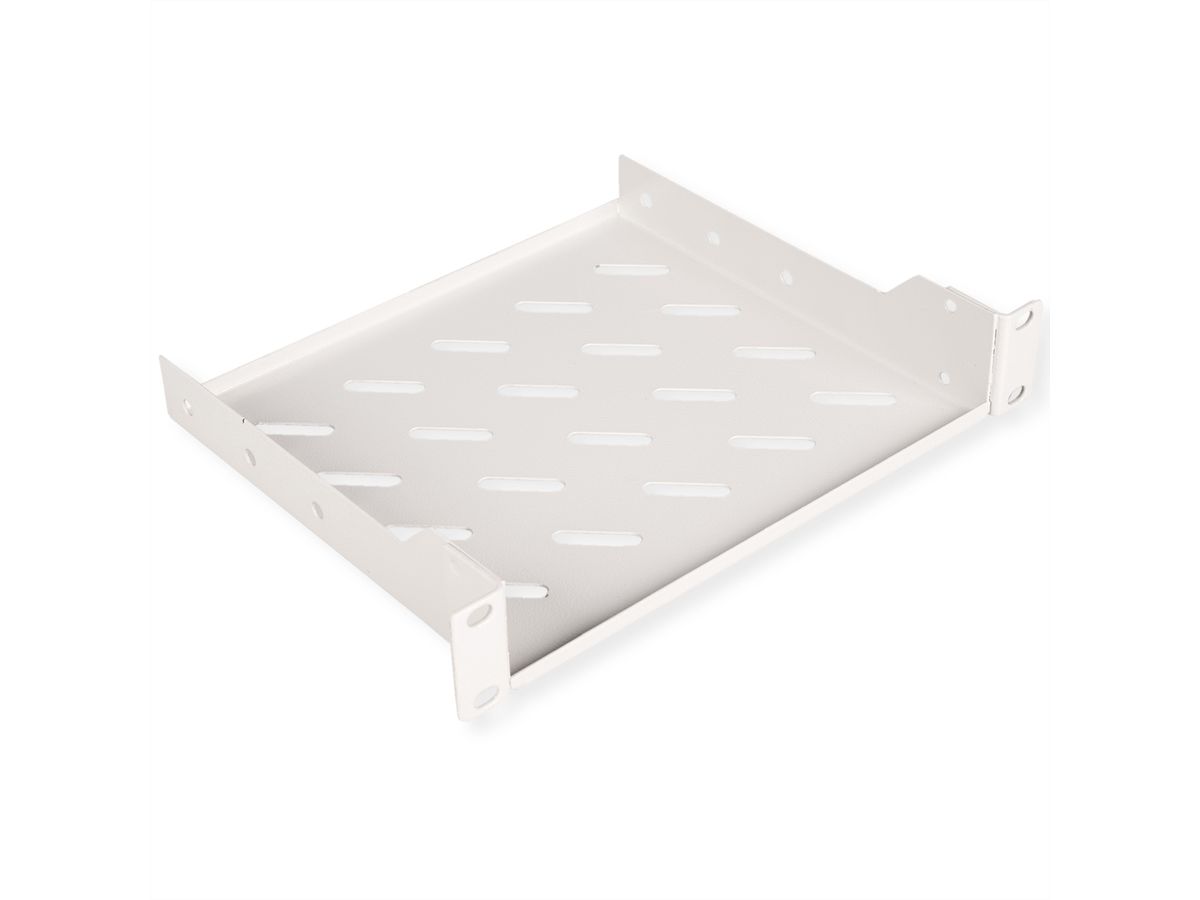

ROLINE 10 inch shelf 1 U 200 T grey

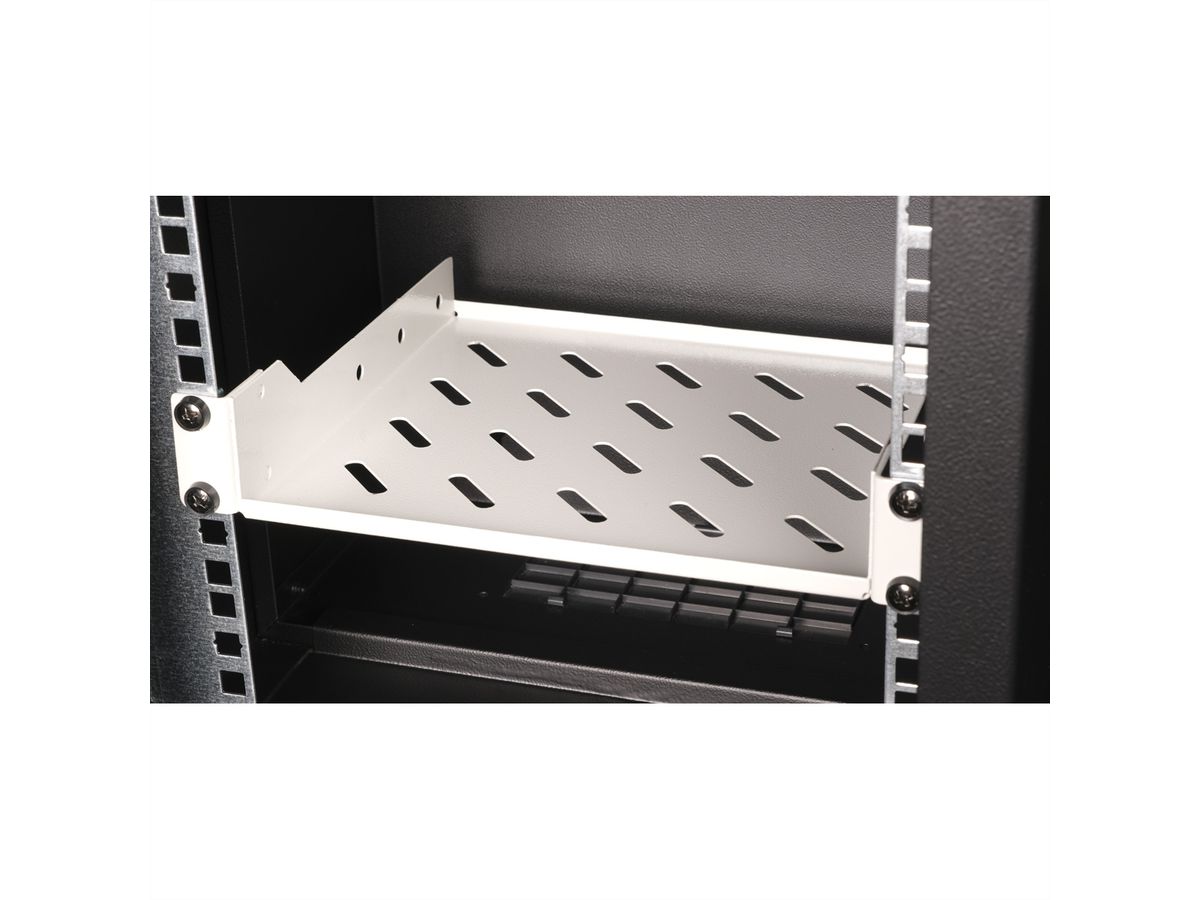

The 10" shelves from ROLINE are made of perforated sheet metal and can be easily mounted on the front 10" profiles. The mounting material is included in the scope of delivery. Use the ROLINE 10" shelves for the secure storage of components that are not to be mounted directly in the 10" enclosure.

The colouring is done using electrostatic powder coating in the standard colours grey (RAL 7035) and black (RAL 9005). Removable side and rear panels as well as a lockable and removable front door improve accessibility. It is possible to change the door hinge. Thanks to their demountable design, the cabinets can also be completely dismantled if required.

Specifications

Manufacturer	ROLINE
Product group	19"- / 10" technology
Product type	10"-Shelf
Colour	grey

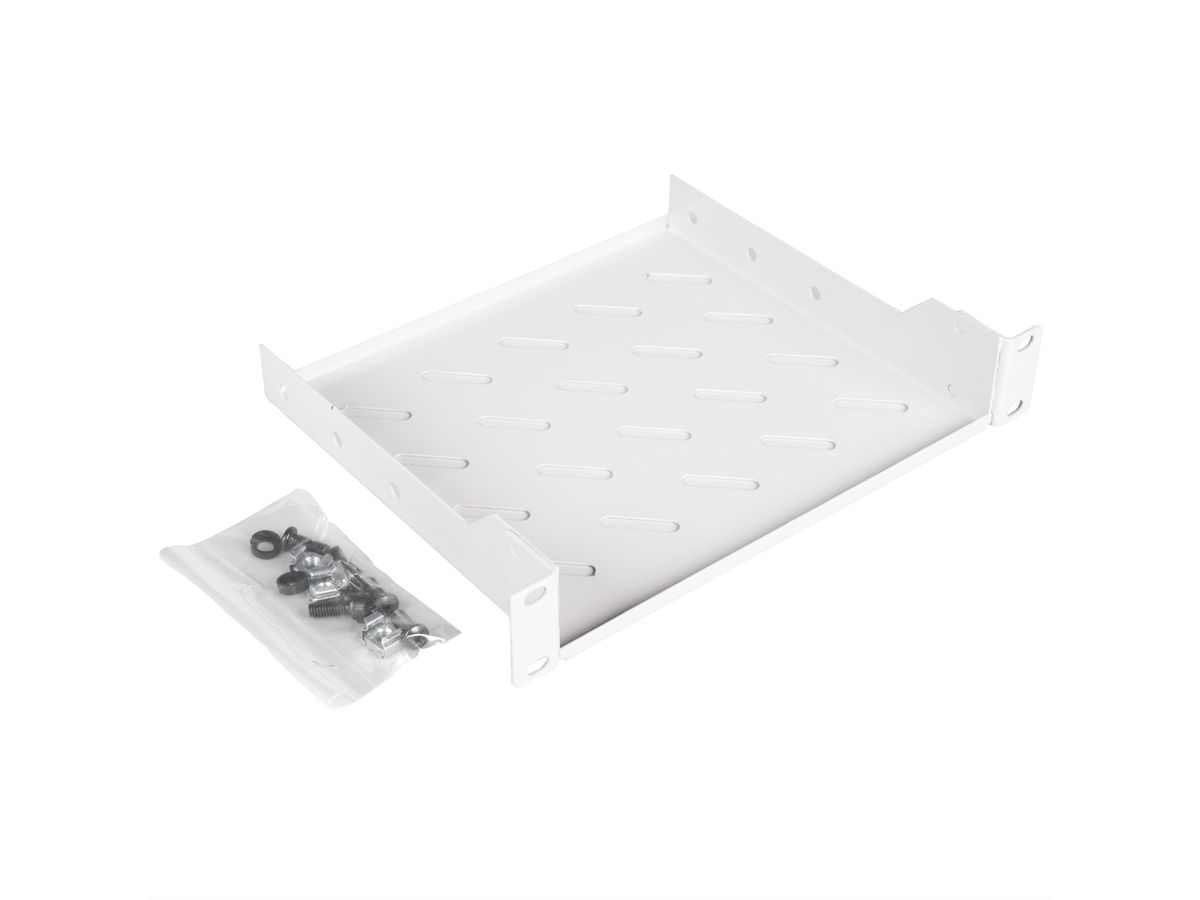

Scope of delivery	Shelf, installation set (screws, cage nuts, washers)
Height units	1 U
Material group	Steel
RAL colour	RAL 7035 Light grey
Height	42 mm
Width	255 mm
Depth	200 mm
Weight	516 g
Height of packaging (single piece)	55 mm
Width of packaging (single piece)	210 mm
Depth of packaging (single piece)	285 mm
Package weight (single piece)	0.61 kg

Downloads

Product data sheet - English (39.7 KB)

Download

The products of our own brand ROLINE are designed for professional continuous operation.

With a 2-year functional guarantee, we stand by our performance promise.

ROLINE – Quality makes the difference.
